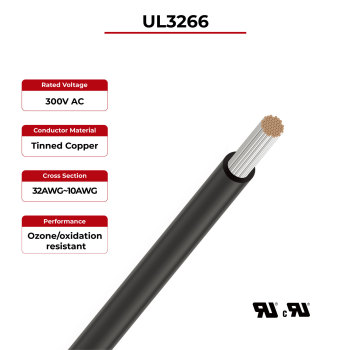

300V Energy Storage Cable UL3266

group name: UL Energy Storage Cable

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: UL3266

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 21:31:22 GMT

contact supplier

Paramtents

Conductor Tinned or bare copper, stranded or solid
Insulation XLPO, RoHS compliant
Rated temperature 125°C
Rated voltage 300V AC
Flame test Horizontal flame UL VW-1 & CSA FT1
According to UL758, UL1581

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 32AWG~10AWG
Color: Black. Optional color

Detailed

UL3266 Energy Storage Cable Advantages

UL3266 Energy Storage Cable

UL 3266 energy storage cables are crucial components in energy storage systems (ESS), serving to connect and transmit electrical power between different system elements, such as batteries, inverters, and the grid. Battery storage cables are designed to handle high currents and voltages, ensuring the efficient and safe transfer of electricity in systems like lithium-ion or flow batteries, which are commonly used for storing energy from renewable sources such as solar.

· Low smoke halogen free

· High temperature resistant

· Ozone/oxidation resistant

· High flexibility

UL3266 Energy Storage Cable Technical Data

Conductor	Tinned or bare copper, stranded or solid
Insulation	XLPO, RoHS compliant
Rated temperature	125°C
Rated voltage	300Vac
According to	UL758, UL1581
Flame test	Horizontal flame UL VW-1 & CSA FT1

UL3266 Energy Storage Cable Product description

Cable Name	Cross Section (AWG)	Insulation Nom Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
UL3266	26	0.38	1.30	148.94
	24	0.38	1.43	93.25
	22	0.38	1.58	55.00
	20	0.38	1.76	34.60
	18	0.38	2.00	21.80
	16	0.38	2.32	14.64
	14	0.38	2.70	9.25
	12	0.38	3.20	5.82
	10	0.38	4.00	3.66
