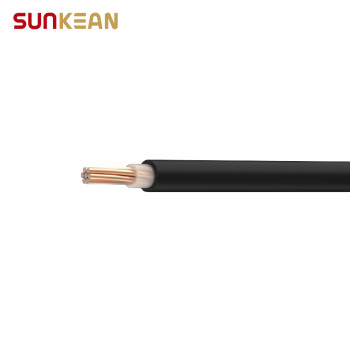

600V Solar Cable CV Single Core PSE

group name: PSE Solar Cable

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: CV Single Core

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 20:04:42 GMT

contact supplier

Paramtents

Rated temperature -15°C~+70°C
Insulation Rating Temperature 90°C
Tested voltage 2~8mm² : 1500V 14~22mm² : 2000V
Rated voltage 600V DC
Reference Standard JIS C 3005, JIS C 3605
Conductor Bare copper
Insulation XLPE, Natural color
Jacket PVC, Black

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 2~22mm²
Insulation Color: Natural
Jacket Color: Black

Detailed

CV Single Core Solar Cable Advantages

600V Solar Cable CV Single Core PSE

Compared with CV multi-core cable, CV single-core cable has natural color insulation. With the most universal 600V low voltage and copper conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JIS C 3005 flame retardant test and JIS C 3605, ensuring the security and stability of Japanese market projects.

· High insulation resistance

· Good flexibility

· Damp heat resistant

· Oil resistant

· UV resistant

CV Single Core Solar Cable Technical Data

Rated temperature	-15°C~+70°C
Insulation Rating Temperature	90°C
Tested voltage	2~8mm² : 1500V 14~22mm² : 2000V
Rated voltage	600V DC
Reference Standard	JIS C 3005, JIS C 3605

CV Single Core Solar Cable Product description

Cable Name	Cross Section (mm²)	Insulation Thickness (mm)	Jacket Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
600V Solar Cable CV Single Core PSE	2.0	0.80	1.50	6.40	9.24
	3.5	0.80	1.50	7.00	5.20
	5.5	1.00	1.50	8.00	3.33
	8.0	1.00	1.50	8.40	2.29
	14.0	1.00	1.50	9.40	1.31
	22.0	1.20	1.50	11.00	0.832
