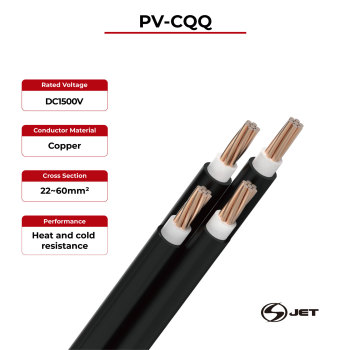

1.5kV Solar Cable PV-CQQ JET Certificated

group name: JET Solar Cable

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: PV-CQQ

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 20:11:47 GMT

contact supplier

Paramtents

Rated temperature -40°C ~ +90°C
Tested voltage 6500V AC
Rated voltage 1500V DC
Reference Standard JETST-CABL-001-1 (H25-10)
Conductor Stranded soft copper, 22~60mm²
Insulation XLPE, White
Jacket XLPO, Black

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 22~60mm²
Insulation Color: Natural
Jacket Color: Black

Detailed

PV-CQQ Solar Cable Advantages

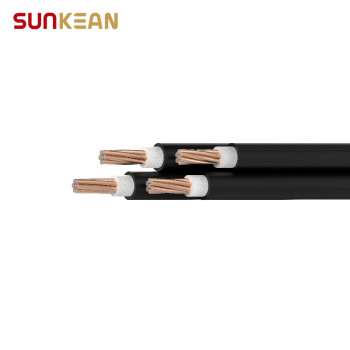

1.5kV Solar Cable PV-CQQ JET

The last letter Q of PV-CQQ means quarter, i.e. four cores. With the universal 1500V low voltage and copper conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JET certification and has excellent flame retardant and weather resistance, ensuring the security and stability of Japanese market projects. It uses XLPE and XLPO as cable insulation and sheath materials, which is estimated to last 25 years in photovoltaic power generation and solar system.

· Excellent flame retardant and weather resistance

· Heat and cold resistance

· Halogen free

PV-CQQ Solar Cable Technical Data

Rated temperature	-40°C ~ +90°C
Tested voltage	6500V AC
Rated voltage	1500V DC
Reference Standard	JETST-CABL-001-1 (H25-10)

PV-CQQ Solar Cable Product description

Cable Name	Cross Section (mm²)	Insulation Thickness (mm)	Jacket Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
1.5kV Solar Cable PV-CQQ JET	22	0.90	1.26	26.00	0.832
	38	0.90	1.32	32.00	0.481
	60	1.00	1.40	37.00	0.305
