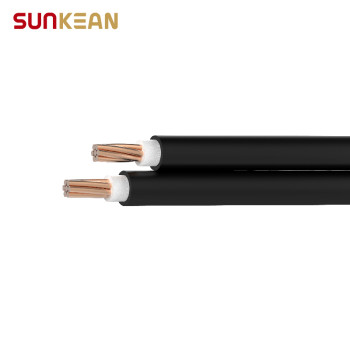

1.5kV Solar Cable PV-CQD JET Certificated
- group name
- JET Solar Cable
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- PV-CQD
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 20:14:12 GMT
Paramtents
Rated temperature -40°C~90°C
Tested voltage 6500V AC
Rated voltage 1500V DC
Reference Standard JETST-CABL-001-1 (H25-10)
Conductor Stranded soft copper, 22~60mm²
Insulation XLPE, White
Jacket XLPO, Black
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 22~60mm²
Insulation Color: Natural
Jacket Color: Black
Insulation Color: Natural
Jacket Color: Black
Detailed
PV-CQD Solar Cable Advantages

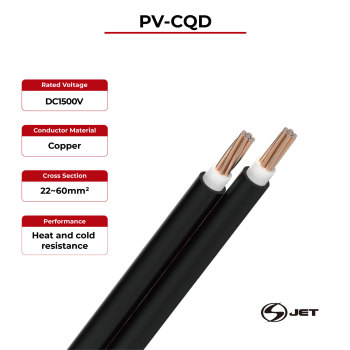

1.5kV Solar Cable PV-CQD JET
The last letter D of PV-CQD means double, i.e. two cores. With the universal 1500V low voltage and copper conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JET certification and has excellent flame retardant and weather resistance, ensuring the security and stability of Japanese market projects. It uses XLPE and XLPO as cable insulation and sheath materials, which is estimated to last 25 years in photovoltaic power generation and solar system.
· Excellent flame retardant and weather resistance
· Heat and cold resistance
· Halogen free
PV-CQD Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Tested voltage | 6500V AC | |
|
Rated voltage
|
1500V DC
|
|
Reference Standard | JETST-CABL-001-1 (H25-10) | |
PV-CQD Solar Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable PV-CQD JET | 22 | 0.90 | 1.26 | 20.60 | 0.832 |
38 | 0.90 | 1.32 | 24.60 | 0.481 | |
60 | 1.00 | 1.40 | 29.40 | 0.305 |
