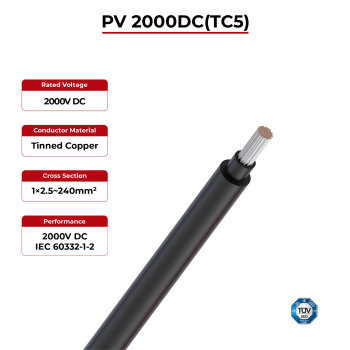

2kV Solar Cable PV 2000DC(TC5) TÜV SÜD

group name: TÜV SÜD Solar Cable

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: PV 2000DC(TC5)

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Wed, 04 Dec 2024 02:13:59 GMT

contact supplier

Paramtents

Rated temperature -40°C~90°C
Rated voltage 2000V DC
Reference Standard JETST-CABL-001-1(H25-10)
Testing Standard IEC60332-1
Reference Standard PPP 58209A: 09.22
Conductor Tinned copper 2.5~240mm²
Insulation XLPO, Optional color
Jacket XLPO, Optional color
Flame Test IEC60332-1

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 2.5~240mm²
Insulation Color: Optional color
Jacket Color: Optional color

Detailed

PV 2000DC(TC5) Solar Cable Advantages

2kV Solar Cable PV 2000DC(TC5) TÜV SÜD

PV 2000DC(TC5) cable is used in 2kV photovoltaic power generation systems and can adapt to long-term and permanent use under variable and harsh outdoor climate conditions. With its copper conductor, it can be widely used in solar projects.

· Can be used for DC 2000V high voltage

· Low smoke halogen free

· UV retardant

· Flame retardant IEC60332-1

PV 2000DC(TC5) Solar Cable Technical Data

Rated temperature	-40°C~90°C
Rated voltage	2000V DC
Reference Standard	JETST-CABL-001-1(H25-10)
Testing Standard	IEC60332-1
Reference Standard	PPP 58209A: 09.22

PV 2000DC(TC5) Solar Cable Product description

Cable Name	Cross Section (mm²)	Insulation Thickness (mm)	Jacket Thickness (mm)	Max. Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
2kV Solar Cable PV 2000DC(TC5) TÜV SÜD	2.5	1.10	0.80	6.30	8.21
	4.0	1.10	0.80	7.00	5.09
	6.0	1.10	0.80	7.60	3.39
	10	1.10	0.80	8.70	1.95
	16	1.10	0.90	10.20	1.24
	25	1.15	1.00	12.50	0.795
	35	1.15	1.10	14.30	0.565
	50	1.25	1.20	16.60	0.393
	70	1.35	1.20	19.00	0.277
	95	1.35	1.30	21.10	0.210
	120	1.45	1.30	23.30	0.164
	150	1.65	1.40	26.00	0.132
	185	1.85	1.60	29.00	0.108
	240	1.95	1.70	32.60	0.0817
