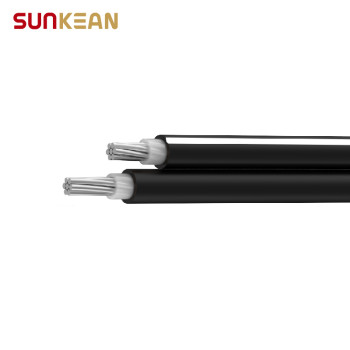

1.5kV Solar Cable Twin Core 2PfG 2642 PV1500DC-AL TÜV
- group name
- TÜV Solar Cable
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- 2PfG 2642 PV1500DC-AL
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 19:54:45 GMT
Paramtents
Rated temperature -40°C~90°C
Max. Short Circuit Temp 250°C / 5s
Tested voltage 6.5kVAC / 5min
Rated voltage DC 1500V U0/U=1000V
Conductor Stranded aluminum alloy, Class 2, 2×10~400mm²
Insulation XLPO
Jacket XLPO
Flame test IEC 60332-1
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 2×10~400mm²
Insulation Color: Natural
Jacket Color: Black & white
Insulation Color: Natural
Jacket Color: Black & white
Detailed
2PfG 2642 PV1500DC-AL Solar Cable Advantages

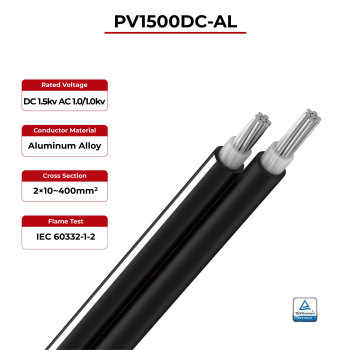

1.5kV Solar Cable Twin Core 2PfG 2642 PV1500DC-AL TÜV
UV resistant low voltage cable. Especially welsuited for outdoor applications due to the very robust outer sheath. Acc. to TÜV Rheinland 2PfG2642 /01.22 for aluminium cables and protected, fixed installation in ground.
· Halogen free
· UV resistant
· XLPO insulation and jacket
· Simple feed, low friction of the jacket
· Flame retardant lEC 60332-1
2PfG 2642 PV1500DC-AL Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Max. Short Circuit Temp | 250°C / 5s | |
Tested voltage | 6.5kVAC / 5min | |
|
Rated voltage
|
DC 1500V
U0/U=1000V |
|
2PfG 2642 PV1500DC-AL Solar Cable Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) | Insulation O.D.
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable Twin Core 2PfG 2642 PV1500DC-AL TÜV | 10 | 0.80 | 5.80 | 0.80 | 14.60 | 3.08 |
16 | 0.90 | 6.80 | 0.90 | 17.00 | 1.91 | |
25 | 1.00 | 8.20 | 1.00 | 20.30 | 1.200 | |
35 | 1.10 | 9.40 | 1.10 | 23.20 | 0.868 | |
50 | 1.20 | 10.90 | 1.20 | 26.70 | 0.641 | |
70 | 1.20 | 12.60 | 1.20 | 30.20 | 0.443 | |
95 | 1.30 | 14.30 | 1.30 | 34.00 | 0.320 | |
120 | 1.30 | 15.80 | 1.30 | 37.10 | 0.253 | |
150 | 1.40 | 17.50 | 1.40 | 40.90 | 0.206 | |
185 | 1.60 | 19.40 | 1.60 | 45.80 | 0.164 | |
240 | 1.70 | 21.90 | 1.70 | 51.40 | 0.125 | |
300 | 1.80 | 24.30 | 1.80 | 56.80 | 0.1000 | |
400 | 2.00 | 27.50 | 2.00 | 64.00 | 0.0788 |
