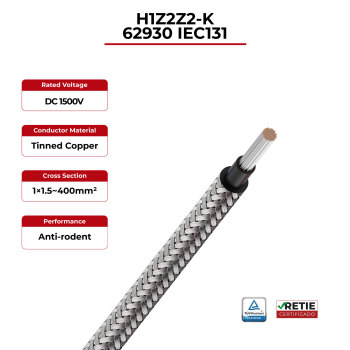

1.5kV Solar Cable Anti-rodent 62930 IEC131 / H1Z2Z2-K TÜV

group name: TÜV Solar Cable

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: Anti-rodent 62930 IEC131 / H1Z2Z2-K

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 23:57:25 GMT

contact supplier

Paramtents

Rated temperature -40°C~90°C
Rated voltage 1500V DC
Tested voltage 6500V AC
Conductor Tinned copper 1.5~400mm²
Insulation XLPO, Optional color
Jacket XLPO, Optional color
Outer screen Steel wire
Flame Test IEC 60332-1
Reference Standard EN50618 & IEC62930

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 1.5~400mm²
Insulation Color: Optional color
Jacket Color: Optional color

Detailed

Anti-rodent 62930 IEC131 / H1Z2Z2-K Solar Cable Advantages

1.5kV Solar Cable Anti-rodent 62930 IEC131 / H1Z2Z2-K TÜV

This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components. It is suitable for outdoor extreme environment.

· Higher UV-stability

· Higher water resistance

· Higher mechanical stability

· Higher insulation resistance

· Flame retardantlEC 60332-1

· Wrapped in stainless steel toprevent rats from chewing

Anti-rodent 62930 IEC131 / H1Z2Z2-K Solar Cable Technical Data

Rated temperature	-40°C~90°C
Rated voltage	1500V DC
Tested voltage	6500V AC
Reference Standard	EN50618 & IEC62930
Testing Standard	Smoke Density Test: Transmittance≥60% EN50618 Cold Bending Test: -40°C±2°C no crack EN60811-504 Flame Test: IEC 60332-1

Anti-rodent 62930 IEC131 / H1Z2Z2-K Solar Cable Product description

Cable Name	Cross Section (mm²)	Insulation Thickness (mm)	Jacket Thickness (mm)	Knitting Thickness	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
1.5kV Solar Cable Anti-rodent 62930 IEC131 / H1Z2Z2-K TÜV	4.0	0.70	0.80	80~85%	6.30	13.7
	6.0	0.70	0.80	80~85%	6.90	8.21
	10	0.70	0.80	80~85%	8.00	5.09
