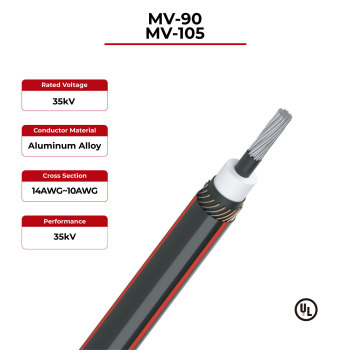

35kV Solar Cable MV-90, MV-105 UL
- group name
- UL Solar Cable
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- MV-90, MV-105
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 23:31:00 GMT
Paramtents
Rated voltage 35kV
Maximum Conductor Temperature (MV-90)90°C, (MV-105)105°C
Conductor Aluminium alloy
Insulation TR-XLPE
Conductor and Insulating shield Semi-conductive XLPO
Concentric Neutral Conductor Bare copper
Jacket (MV-90)LLDPE, (MV-105)XLDPE
Reference Standard ICEA S-94-649 UL 1072
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 14AWG~2000kcmil
Insulation Color: White
Jacket Color: Black & red
Insulation Color: White
Jacket Color: Black & red
Detailed
MV-90, MV-105 Solar Cable Advantages
35kV Solar Cable MV-90, MV-105 UL
MV-90, MV-105 solar cable operates at 35kV or lower and can be used in wet or dry locations, direct burial, underground pipes and locations exposed to sunlight. With its aluminum conductor, they can also effectively reduce costs, and provide EPCs with better solar connecting solutions. In addition, this cable has a complex structural design, including twisted conductor layers, water-swellable filling fibers, insulating shielding layers, concentric neutral conductors, etc., to meet a variety of application requirements.
· Rated for direct burial
· Duried in conduit
· Low smoke halogen free
· Higher insulation resistance
· High Voltage
MV-90, MV-105 Solar Cable Technical Data
|
Maximum Conductor Temperature
|
MV-90: 90°C
MV-105: 105°C |
|
|
Rated voltage
|
35kV
|
|
Reference Standard | ICEA S-94-649
UL 1072 | |
MV-90, MV-105 Solar Cable Product description
Cable Name |
Cross Section
(AWG) | Insulation Thickness
(mm) |
Outer Layer Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
35kV Solar Cable MV-90, MV-105 UL | 4/0 AWG | 10.67 | 2.03 | 45.02 | 0.274 |
500 MAM | 10.67 | 2.03 | 53.42 | 0.116 | |
750 MAM | 10.67 | 2.03 | 59.36 | 0.077 | |
1000 MAM | 10.67 | 2.03 | 61.39 | 0.0581 | |
1250 MAM | 10.67 | 2.03 | 65.38 | 0.0462 |
