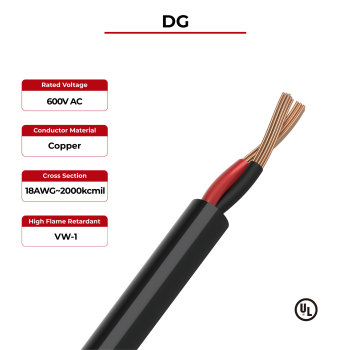

600V Solar Cable DG UL Certificated
- group name
- UL Solar Cable
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- DG
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 23:35:15 GMT
Paramtents
Rated temperature -40°C~90°C
Rated voltage 600V
Conductor Strands bare or tinned copper
Insulation XLPE, Optional color
Jacket XLPE, Black
Reference Standard UL3003, UL44
Packging & Delivery
-
Min Order1 piece
Briefing
This cable can be used for photovoltaic inverter AC branch lines.
Detailed
DG Solar Cable Advantages
600V Solar Cable DG UL
DG cables (distributed generation cables) are designed for specific distributed generation equipment/devices, such as photovoltaic modules, inverters, solar trackers, etc. SUNKEAN has passed the most accurate and targeted certification UL3003 of DG cable. According to the applicable scope of UL3003, the DG cable with 600V voltage and copper conductor is designed to be wrapped under the overall sheath. With its excellent adaptability to harsh outdoor conditions, the cable can be installed in cable trays, cable ducts, and outdoor locations supported by load-bearing cables.
· Oil resistant
· Waterproof
· Sunlight resistant
· Extrusion resistant
· Rated for direct burial
· High flame retardant VW-1
DG Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
|
Rated voltage
|
600V
|
|
Reference Standard | UL3003, UL44 | |
DG Solar Cable Product description
Cable Name |
Conductor
No. | Cross Section
(AWG) | Insulation Thickness
(mm) | Insulation O.D.
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable DG UL | 2 | 14 | 0.76 | 3.50 | 1.14 | 9.60 | 8.62 |
12 | 0.76 | 4.00 | 1.4 | 10.60 | 5.43 | ||
10 | 0.76 | 4.65 | 1.4 | 12.00 | 3.409 |
