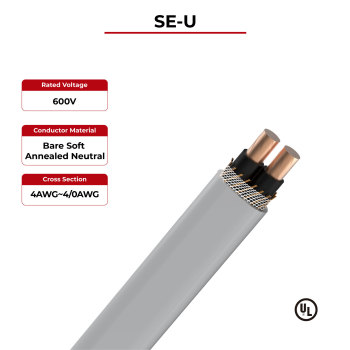

600V Solar Cable SE-U UL Certified

group name: UL Solar Cable

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: SE-U

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Fri, 22 Nov 2024 03:21:14 GMT

contact supplier

Paramtents

Rated temperature -40°C~90°C
Rated voltage 600V
Conductor Class B, aluminum
Insulation XLPE
Jacket PVC, Gray
Neutral Bare soft annealed neutral
Binder Reinforcement binder
Reference Standard UL854, UL1893

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 4AWG~4/0AWG
Insulation color: Black
Jacket color: Gray

Detailed

SE-U Solar Cable Advantages

600V Solar Cable SE-U UL

Type SE, 600V service entrance cable with aluminum conductor, is primarily used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard. However, the cable may be used in all applications where Type SE cable is permitted. SE-U may be used in wet or dry locations at temperatures not to exceed 90°C.

· UV resistant

· Low smoke halogen free

· Can be used in wet and dry environments

SE-U Solar Cable Technical Data

Rated temperature	-40°C~90°C
Rated voltage	600V
Reference Standard	UL854, UL1893

SE-U Solar Cable Product description

Cable Name	Cross Section (AWG)	Insulation Thickness (mm)	Ground Size (AWG)	Jacket Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,25°C)
600V Solar Cable SE-U UL	4	1.14	1x6	0.76	12.7x20.8	0.258
	4	1.14	1x4	0.76	13.4x21.6	0.258
	3	1.14	1x5	0.76	13.4x22.5	0.205
	3	1.14	1x3	0.76	14.2x22.9	0.205
	2	1.14	1x4	0.76	14.9x24.5	0.162
	2	1.14	1x2	0.76	15.2x24.8	0.162
	1	1.40	1x1	0.76	17.0x28.0	0.128
	2/0	1.40	1x2/0	0.76	20.0x33.2	0.081
	3/0	1.40	1x3/0	0.76	22.0x36.4	0.064
	4/0	1.40	1x4/0	0.76	23.3x39.2	0.051
