600V Solar Cable USE-2 UL Certificated

group name: UL Solar Cable

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: USE-2

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 23:30:49 GMT

contact supplier

Paramtents

Rated temperature -40°C~90°C
Rated voltage 600V
Insulation XLPE, Type USE-2
Ground Green
Conductor Class B, Aluminum alloy
Reference Standard UL854, UL1893

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 14AWG~2000kcmil
Insulation Color: Black, Type USE-2
Ground Cable Color: Green

Detailed

USE-2 Solar Cable Advantages

600V Solar Cable USE-2 UL

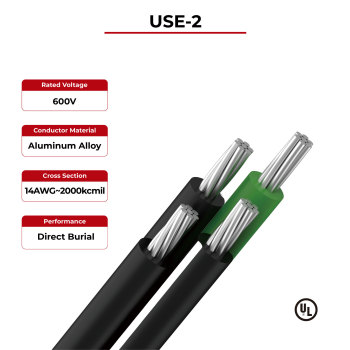

This mobile home feeder USE-2 has aluminum conductor and 600V voltage, is intended for the connection of mobile homes to a supply of electricity where permanent wiring is required as specified in the 2011 National Electrical Code. Suitable for direct burial in the earth at conductor temperatures not to exceed 90°C. The green cable in the picture is the grounding cable of use-2, which is one of the reasons why it is suitable for direct burial underground in the house.

· Can be buried directly

· Wearable tubes and slots

· Can be used in wet and dry environments

USE-2 Solar Cable Technical Data

Rated temperature	-40°C~90°C
Rated voltage	600V
Reference Standard	UL854, UL1893

USE-2 Solar Cable Product description

Cable Name	Cross Section (AWG)	Insulation Thickness (mm)	Ground Size (AWG)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,25°C)
600V Solar Cable USE-2 UL	2	1.52	1x6	24.16	0.267
	2	1.52	1x4	24.16	0.267
	2/0	2.03	1x4	33.35	0.133
	2/0	2.03	1x1	33.35	0.133
	4/0	2.03	1x4	39.42	0.084
	4/0	2.03	1x2/0	39.42	0.084
