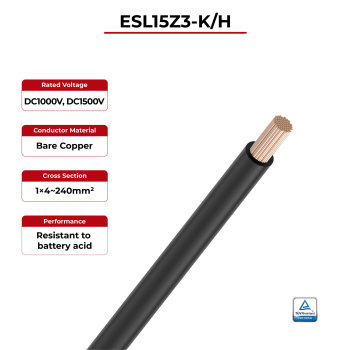

1.5kV Energy Storage Cable ESL15Z3-K/H TÜV

group name: TÜV Energy Storage Cable

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: ESL15Z3-K/H

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 20:39:31 GMT

contact supplier

Paramtents

Conductor Tinned or bare copper
Insulation XLPO
Rated temperature -40°C ~ +125°C
Rated voltage 1500V DC
Flame test IEC 60332-1
According to TÜV 2 PfG 2693/03.23

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 1×4~240mm²
Color: Black, Optional color

Detailed

ESL15Z3-K/H Energy storage Cable Advantages

ESL15Z3-K/H Energy Storage Cable

ESL15Z3-K/H 1283 energy storage cables are crucial components in energy storage systems (ESS), serving to connect and transmit electrical power between different system elements, such as batteries, inverters, and the grid. Battery storage cables are designed to handle high currents and voltages, ensuring the efficient and safe transfer of electricity in systems like lithium-ion or flow batteries, which are commonly used for storing energy from renewable sources such as solar.

· Low smoke halogen free

· Resistan to battery acid

· High flame retardant

· High flexibility

· Easy to install

ESL15Z3-K/H Energy storage Cable Technical Data

Conductor	Tinned or bare copper
Insulation	XLPO
Rated temperature	-40°C ~ +125°C
Rated voltage	1500V DC
According to	TÜV 2 PfG 2693/03.23
Flame test	IEC 60332-1

ESL15Z3-K/H Energy storage Cable Product description

Cable Name	Cross Section (mm²)	Insulation Nom Thickness (mm)	Cable Max O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
TÜV ESL15Z3-K/H	4	0.80	4.80	4.95
	6	0.80	5.40	3.30
	10	1.00	7.40	1.91
	16	1.10	8.60	1.21
	25	1.30	10.50	0.780
	35	1.30	12.50	0.554
	50	1.50	14.50	0.386
	70	1.50	16.50	0.272
	95	1.50	18.50	0.206
	120	1.50	20.00	0.161
	150	1.70	22.50	0.129
	185	1.90	25.00	0.106
	240	2.00	28.00	0.0801
