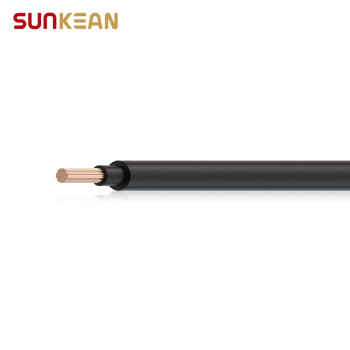

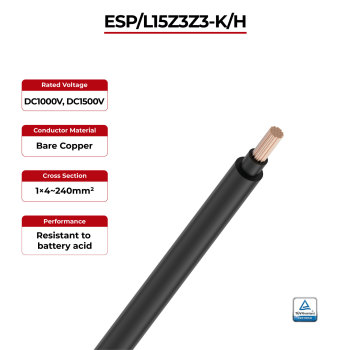

1.5kV Energy Storage Cable ESP/L15Z3Z3-K/H SM-R DH-R TÜV
- group name
- TÜV Energy Storage Cable
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- ESP/L15Z3Z3-K/H SM-R DH-R
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 20:30:39 GMT
Paramtents
Conductor Tinned or bare copper
Insulation XLPO
Rated temperature -40°C ~ +125°C
Rated voltage 1500V DC
According to TÜV 2 PfG 2693/03.23
Flame test IEC 60332-1
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 1×4~240mm²
Color: Black, Optional color
Color: Black, Optional color
Detailed
ESP/L15Z3Z3-K/H SM-R DH-R Energy Storage Cable Advantages
ESP/L15Z3Z3-K/H SM-R DH-R Energy Storage Cable
ESP/L15Z3Z3-K/H SM-R DH-R energy storage cables are crucial components in energy storage systems (ESS), serving to connect and transmit electrical power between different system elements, such as batteries, inverters, and the grid. Battery storage cables are designed to handle high currents and voltages, ensuring the efficient and safe transfer of electricity in systems like lithium-ion or flow batteries, which are commonly used for storing energy from renewable sources such as solar.
· Low smoke halogen free
· Resistant to battery acid
· High flame retardant
· High flexibility
· Salt mist resistant
· Damp heat resistant
ESP/L15Z3Z3-K/H SM-R DH-R Energy Storage Cable Technical Data
|
Conductor
|
Tinned or bare copper
|
|
|
Insulation
|
XLPO |
|
|
Rated temperature
|
-40°C ~ +125°C
|
|
|
Rated voltage
|
1500V DC
|
|
According to | TÜV 2 PfG 2693/03.23 | |
Flame test | IEC 60332-1 | |
ESP/L15Z3Z3-K/H SM-R DH-R Energy Storage Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Nom Thickness
(mm) |
Insulation Max O.D. (mm) | Jacket Nom Thickness
(mm) |
Cable Max O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
TÜV ESP/L15Z3Z3-K/H SM-R DH-R |
4 |
0.80 |
4.80 | 1.00 |
7.00 |
4.95 |
|
6
|
0.80
|
5.40 | 1.00 |
7.80
|
3.30 | |
10 | 1.00 | 7.40 | 1.10 | 9.60 | 1.91 | |
16 | 1.10 | 8.60 | 1.10 | 11.00 | 1.21 | |
25 | 1.30 | 10.50 | 1.20 | 13.00 | 0.780 | |
35 | 1.30 | 12.50 | 1.20 | 15.00 | 0.554 | |
50 | 1.50 | 14.50 | 1.30 | 17.50 | 0.386 | |
70 | 1.50 | 16.50 | 1.40 | 19.50 | 0.272 | |
95 | 1.50 | 18.50 | 1.50 | 21.50 | 0.206 | |
120 | 1.50 | 20.00 | 1.60 | 23.50 | 0.161 | |
150 | 1.70 | 22.50 | 1.70 | 26.00 | 0.129 | |
185 | 1.90 | 25.00 | 1.80 | 28.50 | 0.106 | |
240 | 2.00 | 28.00 | 1.90 | 32.00 | 0.0801 |
