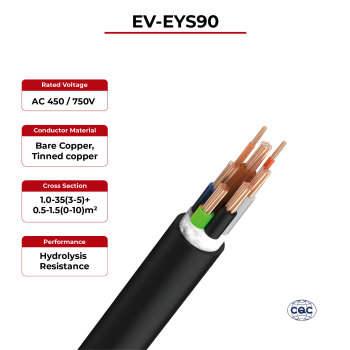

450V Charging Cable GB/T33594 EV-EYS90 CQC
- group name
- CQC Charging Cable
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- EV-EYS90
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 16:45:52 GMT
Paramtents
Conductor Bare copper(1~70mm²) or tinned copper(1~35mm²)
Insulating material TPE
Out layer material XLPE
Rated voltage AC 450 / 750V
Temperature rating -40°C to +90°C
Flame test IEC60332-1
According to GB/T33594
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 1~70mm²
Color: Optional color (except white)
Color: Optional color (except white)
Detailed
GB/T33594 EV-EYS90 Charging Cable Advantages
GB/T33594 EV-EYS90 Charging Cable
Used in conductive charging connection devices for electric vehicles.
· Low temperature resistance
· Oil resistant
· Acid and alkali resistant
· Ozone resistant
· Hydrolysis resistance
GB/T33594 EV-EYS90 Charging Cable Technical Data
|
Conductor:
|
Bare copper(1~70mm²)
or tinned copper(1~35mm²) |
|
|
Insulating material / color:
|
TPE
Main wire core: Blue, brown, black, gray, yellow and green
Single wire core: Orange,red |
|
|
Out layer material / color:
|
XLPE / Optional colors(except white)
|
|
|
Rated voltage:
|
AC 450 / 750V
|
|
|
Temperature rating:
|
-40°C to +90°C
|
|
Flame Test: | IEC60332-1 | |
According to: | GB/T33594 | |
GB/T33594 EV-EYS90 Charging Cable Product description
Cross section
(mm²) |
Permissible ampacity(Ref.)
(A) |
Insulation Nom Thickness
(mm) |
Outer Sheath Nom Thickness
(mm) |
Non-shiedlded Cable O.D.
(mm) |
Conductor Resistance
Max (Ω/km, 20°C) |
3x1.5mm²+(0～10)x(0.5～1.0) |
10
|
0.70
|
1.70 |
11.0~14.2 |
13.3 |
3x2.5mm²+(0～10)x(0.5～1.0) | 16 | 0.70 | 1.80 | 12.0~15.4 | 7.98 |
3x4mm²+(0～10)x(0.5～1.0) |
20
|
0.70
|
1.90
|
13.1~16.8
|
4.95 |
3x6mm²+(0～10)x(0.5～1.0) | 32 | 0.70 | 2.00 | 14.4~18.4 | 3.30 |
3x10mm²+(0～10)x(0.5～1.0) | 40 | 0.70 | 2.20 | 16.4~20.9 | 1.91 |
3x16mm²+(0～10)x(0.5～1.0) | 63 | 0.70 | 2.50 | 18.9~24.0 | 1.21 |
5x2.5mm²+(0～10)x(0.5～1.0) | 16 | 0.70 | 2.00 | 14.2~18.1 | 7.98 |
5x4mm²+(0～10)x(0.5～1.0) | 20 | 0.70 | 2.20 | 15.9~20.3 | 4.95 |
5x6mm²+(0～10)x(0.5～1.0) | 32 | 0.70 | 2.30 | 17.5~22.2 | 3.30 |
5x10mm²+(0～10)x(0.5～1.0) | 40 | 0.70 | 2.60 | 20.2~25.7 | 1.91 |
5x16mm²+(0～10)x(0.5～1.0) | 63 | 0.70 | 2.90 | 23.4~29.6 | 1.21 |
5x25mm²+(0～10)x(0.5～1.0) | 80 | 0.90 | 3.40 | 28.9~36.5 | 0.780 |
5x35mm²+(0～10)x(0.5～1.0) | 125 | 0.90 | 3.70 | 32.2~40.7 | 0.554 |
