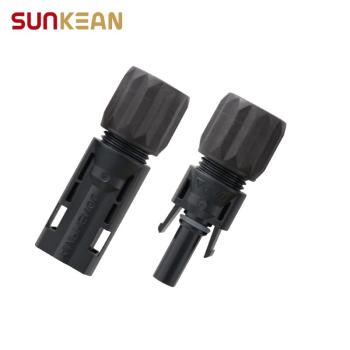

Solar Connector H4 IP68 TÜV & UL
- group name
- Solar Connector
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- H4
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Sun, 19 Oct 2025 23:17:28 GMT
Paramtents
Patented technology RADSOK
Certification TÜV & UL double approval
Requirements RoHS & NEC
Packging & Delivery
-
Min Order1 piece
Briefing
Solar Connectors are specialized connectors used for cable connections in solar photovoltaic (PV) systems.
Detailed
H4 IP68 Solar Connector Advantages

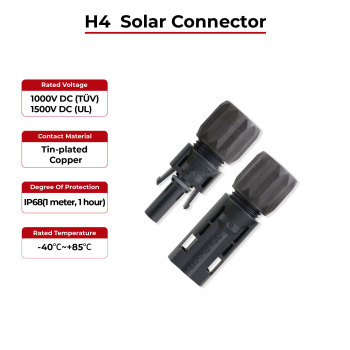

Solar Connector H4 IP68 TÜV & UL
· RADSOK patented technology
· Low contact resistance
· Long-term UV resistance
· TUV & UL double approval
· IP68 Rating (when mated)
· Easy to lock and unlock, strong sealing
· Simple unkocking tool meets NEc requirements
· RoHS compliant
· Ready for filed assembly
H4 IP68 Solar Connector Product description
Product Name | Item | Plug Connector |
||
Solar Connector H4 IP68 TÜV & UL | Rated Voltage | 1000V DC (TÜV)
1500V DC (UL) |
||
Rated Current | 25A (2.5mm²), 35A(4mm²), 45A(6mm²)
15A (14AWG), 20A(12AWG), 30A(10AWG) |
|||
Test Voltage | 6kV for 1 minute, 10kV impulse (1.2/50μS) (IEC) | |||
Typical Contact Resistance | ≤0.3mΩ | |||
Ambient Temp Range | -40°C~+85°C | |||
Contact material | Tin-plated Copper | |||
Contact System | Machined/Cold-formed (CF) OR Stamped & Formed (S&F) | |||
Cable Size | Ø4.5mm to Ø7.8mm | |||
Cable OD Range | 2.5mm²/14AWG, 4.0mm²/12AWG, 6.0mm²/10AWG | |||
Locking Mechanism | Meets 2014 NEC handbook 690.33(C) requirement for self-locking with tool-required unlock | |||
Cable Strain Relief | Compression gland featuring a torque-limiting, ratcheting gland nut | |||
Degree of protection | IP68(1 meter, 1 hour) | |||
Flame Class | UL 94-V0 | |||
