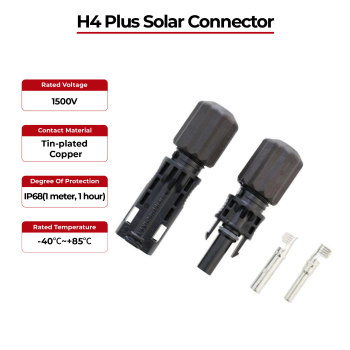

H4 Plus IP68 Solar Connector TÜV & UL
- group name
- Solar Connector
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- H4 Plus
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Sun, 19 Oct 2025 23:14:01 GMT
Paramtents
Patented technology RADSOK
Certification TÜV & UL double approval
Requirements RoHS & NEC
Packging & Delivery
-
Min Order1 piece
Briefing
Solar Connectors are specialized connectors used for cable connections in solar photovoltaic (PV) systems.
Detailed
H4 Plus IP68 Solar Connector Advantages
H4 Plus Solar connector
· RADSOK patented technology
· Lower contact resistance
· Excellent thermal shock performance exceeds UL requirements
· TUV& UL double approval
· IP68 Rating (when mated)
· Easy to lock and unlock, strong sealing
· High-performance polymer material, more reliable, durable, and stable over lifetime
· ROHS, REACH compliant
H4 Plus IP68 Solar Connector Product description
Product Name | Item | Plug Connector |
||
H4 Plus Solar connector | Rated Voltage | 1500V per UL 6703 / IEC 62852, Class A |
||
Rated Current | 25A (2.5mm²), 35A(4.0mm²), 45A(6mm²), 64A(10mm²)
15A (14AWG), 20A(12AWG), 30A(10AWG), 50A(8WAG) |
|||
Typical Contact Resistance | 0.20mΩ, using Amphenol's low resistance RADSOK® contact technolog | |||
Ambient Temp Range | -40°C~+85°C | |||
Contact material | Tin-plated Copper | |||
Contact System | Machined/Cold-formed (CF) OR Stamped & Formed (S&F) | |||
Cable Size | Ø5.0mm to Ø8.7mm | |||
Cable OD Range | 2.5mm²/14AWG, 4.0mm²/12AWG, 6.0mm²/10AWG, 10mm²/8AWG | |||
Locking Mechanism | Meets NEC NFPA 70, 690.33 (C) requirement for self-locking with tool-required unlock (no seperate parts/sleeves needed) | |||
Cable Strain Relief | Compression gland featuring a torque-limiting, anti-backspin, ratcheting gland nut | |||
Degree of protection, mated
unmated | IP68(1 meter, 1 hour)
IPX2 touch-proof | |||
Environmental Ratings | Flame Class: UL 94-V0 Outdoor suitable (f1) rated materials, per UL 746C | |||
