Solar Connector PV4-S IP68 TÜV & UL

group name: Solar Connector

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: PV4-S

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 16:49:48 GMT

contact supplier

Paramtents

Certification TÜV & UL double approval
Aging Test Exceed 3 times the IEC standard
Material Use 100% virgin raw material (no recycle)

Packging & Delivery

Min Order1 piece

Briefing

Solar Connectors are specialized connectors used for cable connections in solar photovoltaic (PV) systems.

Detailed

Advantages

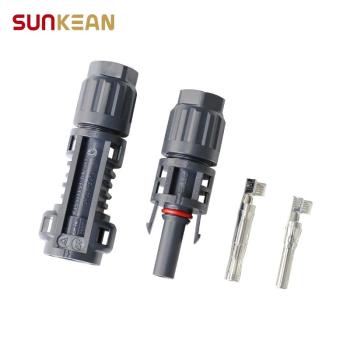

Solar Connector PV4-S IP68 TÜV & UL

Solar Connectors are specialized connectors used for cable connections in solar photovoltaic (PV) systems. IP68 is both dustproof and waterproof, and can be used in a variety of photovoltaic project scenarios. Combined with its TÜV & UL certification, it can play a key role in the European and American standard markets.

· Low contact resistance for less power lost

· Water proof protection

· Exceed 3 times the lEC standard aging tests

· Use 100% virgin raw material (no recycle)

Product description

Product Name	Item	Plug Connector
Solar Connector PV4-S IP68 TÜV & UL	Rated Voltage	1000V DC / 1500V DC(UL / TÜV)
	Rated Current	UL 15A and TÜV 30A(2.5mm2 / 14AWG) UL 20A and TÜV 40A(4.0mm2 / 12AWG) UL 30A and TÜV 45A(6.0mm2 / 10AWG) at 85°C
	Contact Resistance	0.35mΩ
	Ingress Protection Rating	IP68 (1m/24 hours)
	Housing Material	PPE
	Contact Material	Tinned copper
	Stands	1000V DC / 1500V DC UL approved - UL6703 1000V DC / 1500V DC TUV approved - IEC 62852 1000V DC / 1500V DC JET pending
