Solar Cable Jumper & Whip TÜV & UL

Solar Cable Jumper & Whip TÜV & UL
Solar Cable Jumper & Whip TÜV & ULSolar Cable Jumper & Whip TÜV & ULSolar Cable Jumper & Whip TÜV & UL
group name
Solar Harness
Min Order
1 piece
brand name
SUNKEAN Solar Manufacturer
model
Jumper & Whip
Nearest port for product export
Shanghai
Delivery clauses under the trade mode
FOB, CIF, EXW, FCA, DDP, DDU
Acceptable payment methods
T/T, L/C
update time
Thu, 21 Nov 2024 20:36:11 GMT

Paramtents

  • IP Level IP68

  • Connector Material PC/PA/PPE

  • Flame Class UL 94-V0

Packging & Delivery

  • Min Order1 piece

Briefing

As a flexible assembly component in the photovoltaic system, can effectively improve construction efficiency.

Detailed

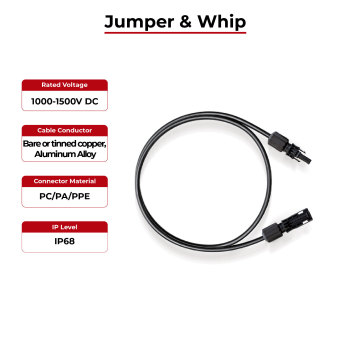

 Jumper & Whip Solar Cable Advantages
solar cable
Solar Cable Jumper & Whip TÜV & UL

The two-section pre-assembled connector, as a flexible assembly component in the photovoltaic system, can effectively improve construction efficiency. When the cable is insufficient or positioned incorrectly in complex actual project scenarios, jumper & whip can easily solve the problem and ensure the stability of the current as before.

· Connector is set up at BOTH or SINGLE end of cable
· Appointed length is acceptable
· No need for terminal processing
· Tinned copper contact is pre-assembled, no need for a crush tool
· If the O.D. of two ends is different can also be connected
 Jumper & Whip Solar Cable Product description
Product Name
Item
Plug Connector
Solar Cable Jumper & Whip TÜV & UL
Cable Insulation Material
Double XLPO
Cable Conductor
Bare or tinned copper, Aluminum Alloy (Optioanal)
Connector Material
PC/PA/PPE
Rated Current
TÜV 30A /UL 20A
Rated Voltage
1000-1500V DC
Contact Resistance
≤ 0.5m'Ω
Ambient Temp
-40°C-+90°C
Plug Force
≤50N
Withdraw Force
≥50N
IP Level
IP68
Safety Class
II
Flame Class
UL 94-V0
