Solar Cable Trunk Connector IP68

group name: Solar Harness

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: Trunk Connector

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 14:47:07 GMT

contact supplier

Paramtents

IP Test IP68
Material TPV
Production Technology Hi-tech sealing technology

Packging & Delivery

Min Order1 piece

Briefing

An innovative all-in-one trunk bus system that provides stable power transmission from panels to the utility system.

Detailed

Trunk Connector Solar Cable Advantages

Solar Cable Trunk Connector IP68

It is an innovative all-in-one trunk bus system that provides stable power transmission from solar panels to the utility power collection system. It reduces the Capex and increases the ROI of a utility scale solar installation. From the appearance, trunk connector has a delicate appearance and harmonious and unified colors; from the process, the first-class injection molding equipment is used to create an excellent connection at the joint.

· Hi-tech sealing technology

· Excellent waterproof performance

· Plug and play - easy to install

· Reduce material waste & labor cost

· IP68

· TPV material

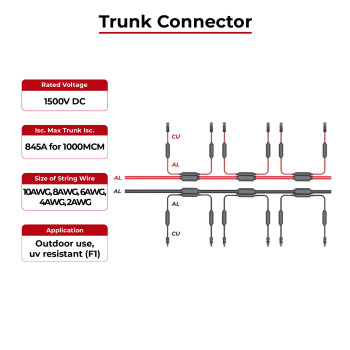

Trunk Connector Solar Cable Technical Data

Product Name	Item	Plug Connector
Solar Cable Trunk Connector IP68	Voltage Rating	1500V DC
	Isc. Max Trunk Isc.	845A for 1000MCM
	Strings Per Mold	Customized according to needs, usually 6 ~ 7 strings
	Size of String Wire	10AWG, 8AWG, 6AWG, 4AWG, 2AWG
	Work Environment Temperature	-40°C~+60°C, Humidity range: 5% ~ 95%
	Max Ambient Temperature	60°C
	Over Voltage Category / Pollution Degree	CATIII/ 3
	Flame Rating	UL94-5VA
	Safety Degree	II
	Application	Outdoor use, uv resistant (F1)
