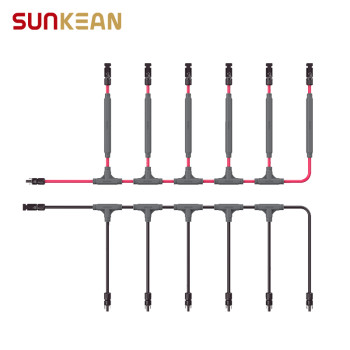

Solar Cable String Harness IP68

Solar Cable String Harness IP68
Solar Cable String Harness IP68Solar Cable String Harness IP68Solar Cable String Harness IP68
group name
Solar Harness
Min Order
1 piece
brand name
SUNKEAN Solar Manufacturer
model
String Harness
Nearest port for product export
Shanghai
Delivery clauses under the trade mode
FOB, CIF, EXW, FCA, DDP, DDU
Acceptable payment methods
T/T, L/C
update time
Sat, 18 Jan 2025 10:00:31 GMT

Paramtents

  • IP Test IP68

  • Material TPV

  • Product Type I, T, X, Y, 3 to 1, 4 to 1, 5 to 1, 6 to 1

Packging & Delivery

  • Min Order1 piece

Briefing

Pre-assembled solutions ensure consistently high levels of quality and speed up assembly.

Detailed

String Harness Solar Cable Advantages
solar cable
Solar Cable String Harness IP68
We offer individual cable solutions for professional and safe cabling. Pre-assembled solutions ensure consistently high levels of quality and speed up assembly. From the appearance, string harness has a delicate appearance and harmonious and unified colors; from the process, the first-class injection molding equipment is used to create an excellent connection at the joint.

· Hi-tech sealing technology
· lP68
· Appearance patent
· Easy to install
· TPV material
· Reduce material consumption & labor costs

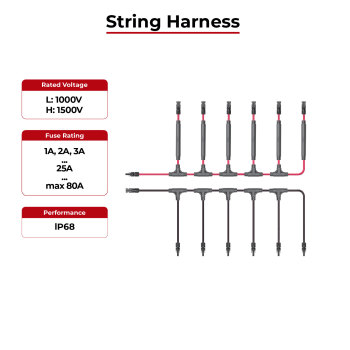

String Harness Solar Cable Product description
Product Name
Product Type
Cable Section
Connector
Voltage
Fuse Rating
Solar Cable String Harness IP68
S-I:I junction
2.5mm2 / 14AWG
4mm2 / 12AWG
6mm2 / 10AWG
10mm2 / 8AWG
16mm2 / 6AWG
25mm2 / 2AWG
TE PV4-S
STAUBLI MC4
STAUBLI MC4-EVO2
AMPHENOL H4S
QC4.10 Plus
TLIAN T4
TRINA TS4
JINKO JK03M2
LONGI PV-LR5
TONGLIN TL-CABLE01S
L: 1000V
H: 1500V
1A
2A
3A
...
25A
...
max 80A
S-T:T junction
S-X:X junction
S-Y:Y junction
S-3 to 1: 3 to 1 junction
S-4 to 1: 4 to 1 junction
S-5 to 1: 5 to 1 junction
S-6 to 1: 6 to 1 junction
■ Strings can be customized according to needs
