1500V Solar Cable In-line Fuse Assembly

group name: Solar Harness

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: In-line Fuse Assembly

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 21:09:52 GMT

contact supplier

Paramtents

Fuse-link Standard Ref. to: UL248-19, IEC 60269-6
Insulation Material Special-Hotmelt, UV-stable, IP68
Flame Class Self-extinguishing UL94-5VA

Packging & Delivery

Min Order1 piece

Briefing

Made of high-quality weather-resistant materials and mold-sealed manufacturing process to ensure long-term reliability.

Detailed

In-line Fuse Assembly Solar Cable Advantages

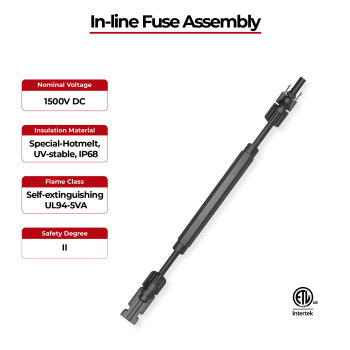

1500V Solar Cable In-line Fuse Assembly

SUNKEAN In-line Fuse Assembly is made of high-quality weather-resistant materials and mold-sealed manufacturing process to ensure long-term reliability. They can be installed on site. Low contact resistance and high current transfer capability ensure high production efficiency. With IP68 waterproof rating, it can be used in a wide operating temperature range.

In-line Fuse Assembly Solar Cable Technical Data

Product Name	Item	Plug Connector
1500V Solar Cable In-line Fuse Assembly	Nominal Voltage	1500V DC
	Interrupting Ratings	50kA
	Fuse-link	Standard Ref. to: UL248-19, IEC 60269-6
	Insulation Material	Special-Hotmelt, UV-stable, IP68
	Flame Class	Self-extinguishing UL94-5VA
	Working Environment Temperature	-40℃~+60'℃, Humidity range: 5%~95%
	Over Voltage Category/Pollution Degree	CATIII/3
	Safety Degree	II

In-line Fuse Assembly Solar Cable Product description

Product Type	Fuse Voltage	Fuse Current	Cable Spec	Connector
S-I...VI：Fuse Holder	1000V DC	1-32A (10x85mm) 10-50A (14x85mm) 60A (24x65mm) 70A (24x65mm) 80A (24x65mm)	3.5mm2 5.5mm2 4mm2 /12AWG 6mm2 /10AWG 10mm2 /8AWG 16mm2 /6AWG	TE PV4-S STAUBLI MC4 STAUBLI MC4-EVO2 AMPHENOL H4S QC4.10 Plus TLIAN T4 TRINA TS4 JINKO JK03M2 LONGI PV-LR5 TONGLIN TL-CABLE01S
