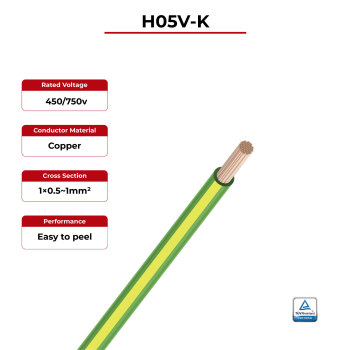

300/500V Solar Cable Copper Conductor H05V-K

group name: Copper Conductor

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: H05V-K

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 17:26:29 GMT

contact supplier

Paramtents

Conductor Stranded, tinned, or bare copper conductor
Insulation PVC, RoHS compliant
Rated temperature -15°C~70°C
Rated voltage 300/500 V
Reference Standard EN50525-2-31
Conductor Tinned or bare copper 0.5~1mm²
Insulation PVC
Flame Test IEC60332-1

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 0.5~1mm²
Insulation Color: yellow & green

Detailed

H05V-K Solar Cable Advantages

300/500V Solar Cable Copper Conductor H05V-K

H05V-K is suitable for rated voltages of 300/500V and is a 70°C PVC insulated flexible conductor. Suitable for internal wiring in electric cabinets, switchboards, motors and other electric equipment. Its advantages include easy peeling and cutting, good flexibility, this can reduce the difficulty of construction for workers in actual project application, thereby saving project costs and improving project efficiency. At the same time, its high concentricity and good flame retardancy also ensure the safety and stability of the project.

· Easy to peel

· Easy to cut

· High flexibility

· High concentricity

· High flame retardant

· Flame retardant IEC60332-1

H05V-K Solar Cable Technical Data

Conductor	Stranded, tinned, or bare copper conductor 0.5~1mm²
Insulation	PVC, RoHS compliant
Rated temperature	-15°C~70°C
Rated voltage	300/500 V
Reference Standard	EN50525-2-31

H05V-K Solar Cable Product description

Cable Name	Cross Section (mm²)	Insulation Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
300/500V Solar Cable Copper Conductor H05V-K	0.5	0.60	2.30	39.0
	0.75	0.60	2.40	26.0
	1.0	0.60	2.60	19.5
