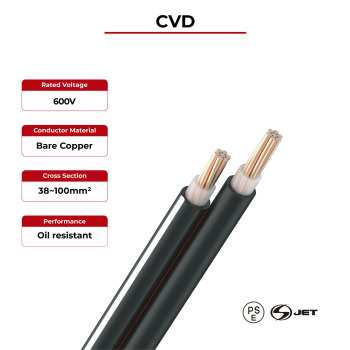

600V Solar Cable Copper Conductor CVD
- group name
- Copper Conductor
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- CVD
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 19:33:13 GMT
Paramtents
Rated temperature -15°C~70°C
Tested voltage 2500V AC
Rated voltage 600V
Reference Standard JIS C 3005, JIS C 3605
Conductor Bare copper
Insulation XLPE, Natural color
Jacket PVC, Black
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 38~100mm²
Insulation Color: Natural
Jacket Color: Black & white
Insulation Color: Natural
Jacket Color: Black & white
Detailed
CVD Solar Cable Advantages
600V Solar Cable Copper Conductor CVD
The D in the name of CVD cable means double, i.e. two cores, which are clearly distinguished by different colored marking strips. With the most universal 600V low voltage and copper conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JIS C 3005 flame retardant test, which can ensure the security and stability of Japanese market projects.
· High insulation resistance
· Good flexibility
· Damp heat resistant
· Oil resistant
· UV resistant
· Flame retardant JIS C 3005 (60 degrees tilt test)
CVD Solar Cable Technical Data
|
Rated temperature
|
-15°C~70°C
|
|
Tested voltage | 2500V AC | |
|
Rated voltage
|
600V
|
|
Reference Standard | JIS C 3005, JIS C 3605 | |
CVD Solar Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable Copper Conductor CVD | 38 | 1.20 | 1.50 | 26.00 | 0.491 |
60 | 1.50 | 1.50 | 30.50 | 0.311 | |
100 | 2.00 | 1.50 | 37.50 | 0.187 |
