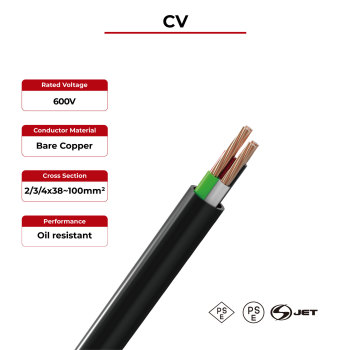

600V Solar Cable Copper Conductor CV Multi-core
- group name
- Copper Conductor
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- CV Multi-core
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 23 Nov 2024 15:55:17 GMT
Paramtents
Rated temperature -15°C~70°C
Tested voltage 2500V AC
Rated voltage 600V
Reference Standard JIS C 3005, JIS C 3605
Conductor Bare copper
Insulation XLPE
Jacket PVC, Black
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 2~100mm²
Insulation Color: Black, Red, Green, Natural color
Jacket Color: Black
Insulation Color: Black, Red, Green, Natural color
Jacket Color: Black
Detailed
CV Multi-core Solar Cable Advantages
600V Solar Cable Copper Conductor CV Multi-core
CV multi-core cable has three versions of 2C, 3C, and 4C to choose from. With the most universal 600V low voltage and copper conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JIS C 3005 flame retardant test, ensuring the security and stability of Japanese market projects.
Core color:
2C(Black, Natural color),
3C(Black, Red, Natural color)
4C(Black, Red, Green, Natural color)
· High insulation resistance
· Good flexibility
· Damp heat resistant
· Oil resistant
· UV resistant
· Flame retardant JIS C 3005 (60 degrees tilt test)
CV Multi-core Solar Cable Technical Data
|
Rated temperature
|
-15°C~70°C
|
|
Tested voltage | 2500V AC | |
|
Rated voltage
|
600V
|
|
Reference Standard | JIS C 3005, JIS C 3605 | |
CV Multi-core Solar Cable Product description
Cable Name |
Number of
Cores |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable Copper Conductor CV Multi-core | 2 | 2 | 0.80 | 1.50 | 10.50 | 9.42 |
3.5 | 0.80 | 1.50 | 11.50 | 5.30 | ||
5.5 | 1.00 | 1.50 | 13.50 | 3.40 | ||
8 | 1.00 | 1.50 | 14.50 | 2.36 | ||
14 | 1.00 | 1.50 | 16.50 | 1.34 | ||
22 | 1.20 | 1.50 | 19.50 | 0.849 | ||
38 | 1.20 | 1.60 | 24.00 | 0.491 | ||
60 | 1.50 | 1.80 | 29.00 | 0.311 | ||
100 | 2.00 | 2.10 | 37.00 | 0.187 | ||
3 | 2 | 0.80 | 1.50 | 11.00 | 9.42 | |
3.5 | 0.80 | 1.50 | 12.00 | 5.30 | ||
5.5 | 1.00 | 1.50 | 14.50 | 3.40 | ||
8 | 1.00 | 1.50 | 15.50 | 2.36 | ||
14 | 1.00 | 1.50 | 17.50 | 1.34 | ||
22 | 1.20 | 1.50 | 21.00 | 0.849 | ||
38 | 1.20 | 1.60 | 25.00 | 0.491 | ||
60 | 1.50 | 1.90 | 31.00 | 0.311 | ||
100 | 2.00 | 2.20 | 40.00 | 0.187 | ||
4 | 2 | 0.80 | 1.50 | 11.50 | 9.42 | |
3.5 | 0.80 | 1.50 | 13.00 | 5.30 | ||
5.5 | 1.00 | 1.50 | 15.50 | 3.40 | ||
8 | 1.00 | 1.50 | 17.00 | 2.36 | ||
14 | 1.00 | 1.50 | 19.00 | 1.34 | ||
22 | 1.20 | 1.50 | 23.00 | 0.849 | ||
38 | 1.20 | 1.80 | 28.00 | 0.491 | ||
60 | 1.50 | 2.00 | 35.00 | 0.311 | ||
100 | 2.00 | 2.40 | 44.00 | 0.187 |
