600V Solar Cable Copper Conductor IV

group name: Copper Conductor

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: IV

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 16:53:21 GMT

contact supplier

Paramtents

Rated temperature 60°C
Rated voltage 600V
Reference Standard JIS C 3005
Conductor Bare copper, 0.9~100mm²
Insulation PVC, Black, white, red, green, yellow, blue

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 0.9~100mm²
Color: Black, white, red, green, yellow, blue or other colors

Detailed

IV Solar Cable Advantages

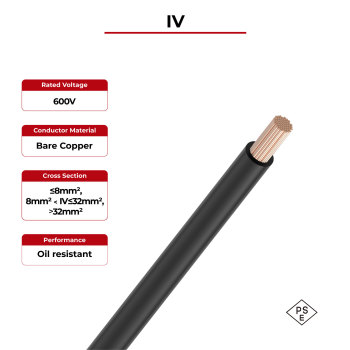

600V Solar Cable Copper Conductor IV

IV cable has a single-layer structure, composed of natural color insulation and copper conductor. The insulation material is PVC, it has many colors like black, white, red, green, yellow, and blue. As a common 600V cable type, it can be used in various photovoltaic projects in the Japanese market. WIth its copper conductor, it is destined to have stronger practical application effects such as better conductivity.

· High insulation resistance

· Good flexibility

· Damp heat resistant

· Oil resistant

· UV resistant

IV Solar Cable Technical Data

Rated temperature	60°C
Tested voltage	0.9~8mm²: 1500V 14~22mm²: 2000V 38~100mm²: 2500V
Rated voltage	600V
Reference Standard	JIS C 3005

IV Solar Cable Product description

Cable Name	Cross Section (mm²)	Insulation Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
600V Solar Cable Copper Conductor IV	0.9	0.80	2.80	20.9
	1.25	0.80	3.00	16.5
	2.0	0.80	3.40	9.24
	3.5	0.80	4.00	5.20
	5.5	1.00	5.00	3.33
	8.0	1.20	6.00	2.31
	14	1.40	7.60	1.30
	22	1.60	9.20	0.824
	38	1.80	11.50	0.487
	60	1.80	14.00	0.303
	100	2.00	17.00	0.180
