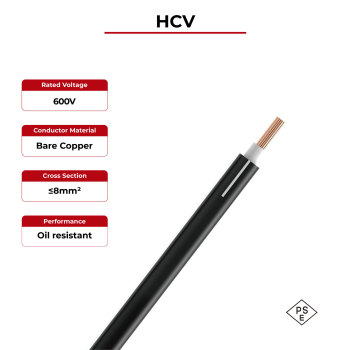

600V Solar Cable Copper Conductor HCV

group name: Copper Conductor

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: HCV

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 30 Jan 2025 04:36:50 GMT

contact supplier

Paramtents

Rated temperature -15°C~90°C
Tested voltage 1500V AC
Rated voltage 600V
Flame Test JIS C 3005
Conductor Bare copper, 2~8mm²
Insulation XLPE, White
Jacket Heat resistance PVC, Optional color

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 2~8mm²
Insulation Color: White
Jacket Color: Black & white

Detailed

HCV Solar Cable Advantages

600V Solar Cable Copper Conductor HCV

There is a white stripe on the heat resistance PVC sheath of the HCV cable, which can help distinguish it from other types of cables. As a common 600V voltage cable, it can be used in various photovoltaic projects in the Japanese market. The outer sheath is made of heat-resistant PVC material and has passed the Japanese combustion test JIS C 3005, which can effectively improve the safety and stability of the solar project.

· High insulation resistance

· Good flexibility

· Damp heat resistant

· Oil resistant

· UV resistant

HCV Solar Cable Technical Data

Rated temperature	-15°C~90°C
Tested voltage	1500V AC
Rated voltage	600V
Reference Standard	JIS C 3005
Jacket Material	Heat resistance PVC
Insulation Material	XLPE

HCV Solar Cable Product description

Cable Name	Cross Section (mm²)	Insulation Thickness (mm)	Jacket Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
600V Solar Cable Copper Conductor HCV	2.0	0.80	1.50	6.20	9.24
	3.5	0.80	1.50	6.70	5.20
	5.5	1.00	1.50	7.70	3.33
	8.0	1.00	1.50	8.30	2.31
