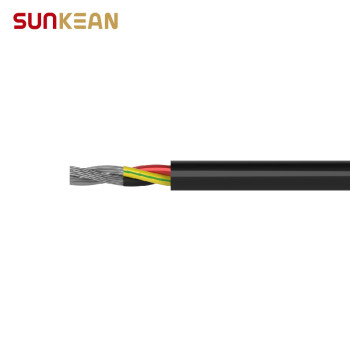

450V Solar Cable Copper Conductor 2PfG 1940 PV07AC-F
- group name
- Copper Conductor
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- 2PfG 1940 PV07AC-F
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 17:08:21 GMT
Paramtents
Operating Temperature -40°C~90°C
Max. Conductor Temperature 120°C
Tested voltage 6kVac / 5min
Rated voltage 450 / 750V
Conductor Tinned copper 1.5mm²~16mm²
Insulation XLPE
Jacket XLPE, Color black
Flame Test IEC60332-1
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 1.5~16mm²
Color: Black, red, yellow/green or other colors
Color: Black, red, yellow/green or other colors
Detailed
2PfG 1940 PV07AC-F Solar Cable Advantages
450V Solar Cable Copper Conductor 2PfG 1940 PV07AC-F
AC cables on the AC application end of new energy systems are used in photovoltaic CSP systems and wind power systems. 2PfG 1940 PV07AC-F solar cable has 2C, 3C, 4C and 5C cores for chosen, and passed flame test IEC60332-1. With the above characteristics, this cable is destined to be suitable for AC applications.
· Low smoke halogen-free
· Flame retardant IEC60332-1
· High flexibility
· Low temperature resistance
· Acid and alkali resistant
2PfG 1940 PV07AC-F Solar Cable Technical Data
|
Operating Temperature
|
-40°C~90°C
|
|
Max. Conductor Temperature | 120°C | |
Tested voltage | 6kVac / 5min | |
|
Rated voltage
|
450 / 750V
|
|
2PfG 1940 PV07AC-F Solar Cable Product description
Cable Name |
Cores No.
|
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Insulation O.D.
(mm) |
Outer Sheath Nom
Thickness (mm) | Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
450V Solar Cable Copper Conductor 2PfG 1940 PV07AC-F | 3 | 2.5 | 0.80 | 3.80 | 1.02 | 10.30 | 8.21 |
4 | 0.80 | 4.30 | 1.16 | 11.30 | 5.09 | ||
6 | 0.80 | 4.80 | 1.32 | 13.10 | 3.39 | ||
10 | 0.80 | 5.80 | 1.60 | 15.80 | 1.95 | ||
4 | 2.5 | 0.80 | 3.80 | 1.15 | 11.50 | 8.21 | |
4 | 0.80 | 4.30 | 1.30 | 13.00 | 5.09 | ||
6 | 0.80 | 4.80 | 1.48 | 14.60 | 3.39 | ||
10 | 0.80 | 5.80 | 1.79 | 17.60 | 1.95 | ||
5 | 2.5 | 0.80 | 3.80 | 1.28 | 12.90 | 8.21 | |
4 | 0.80 | 4.30 | 1.46 | 14.60 | 5.09 | ||
6 | 0.80 | 4.80 | 1.65 | 16.40 | 3.39 | ||
10 | 0.80 | 5.80 | 2.00 | 19.80 | 1.95 |
