1.5kV Solar Cable Copper Conductor 2PfG 2962 PV1500-SWR
- group name
- Copper Conductor
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- 2PfG 2962 PV1500-SWR
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 18:19:21 GMT
Paramtents
Rated temperature -40°C~90°C
Rated voltage 1500V DC
Conductor Tinned copper 1.5~240mm²
Insulation XLPO, Black
Jacket XLPO, Black
Related Tests Salt mist test, Mould growth test
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 1.5~240mm²
Insulation Color: Black
Jacket Color: Black
Insulation Color: Black
Jacket Color: Black
Detailed
2PfG 2962 PV1500-SWR Solar Cable Advantages

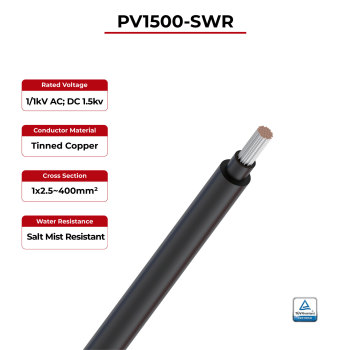

1.5kV Solar Cable Copper Conductor 2PfG 2962 PV1500-SWR
The floating solar cable is specially designed for floating power stations, compatible with all major connectors, passed TÜV 2PfG 2962/12.23 standards, suitable for photovoltaic power generation such as near-shore floating surface power stations.
· Damp heat resistant
· UV & Ozone resistant
· Salt mist resistant
· Mold resistant
· Acid and alkali resistant
· Flame retardant lEC 60332-1
2PfG 2962 PV1500-SWR Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
|
Rated voltage
|
1500V DC
|
|
Test Item | Change of capacitance on complete cable Long term resistance of in sulation to d.c. on complete cable Salt mist test Mould growth test | |
2PfG 2962 PV1500-SWR Solar Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) | Insulation O.D.
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable Copper Conductor 2PfG 2962 PV1500-SWR | 1.5 | 0.80 | 3.20 | 0.80 | 4.80 | 13.70 |
2.5 | 0.80 | 3.65 | 0.80 | 5.30 | 8.21 | |
4 | 0.80 | 4.10 | 0.80 | 5.70 | 5.09 | |
6 | 0.80 | 4.70 | 0.80 | 6.30 | 3.39 | |
10 | 0.80 | 5.75 | 0.80 | 7.40 | 1.95 | |
16 | 0.90 | 7.35 | 0.90 | 9.20 | 1.24 | |
25 | 1.00 | 8.90 | 1.00 | 11.00 | 0.795 | |
35 | 1.10 | 10.40 | 1.10 | 12.70 | 0.565 | |
50 | 1.20 | 12.00 | 1.20 | 14.60 | 0.393 | |
70 | 1.20 | 14.00 | 1.20 | 16.65 | 0.277 | |
95 | 1.30 | 15.90 | 1.30 | 18.80 | 0.210 | |
120 | 1.30 | 17.60 | 1.30 | 20.50 | 0.164 | |
150 | 1.40 | 19.60 | 1.40 | 22.75 | 0.132 | |
185 | 1.60 | 21.30 | 1.60 | 24.85 | 0.108 | |
240 | 1.70 | 23.90 | 1.70 | 27.70 | 0.0817 |
