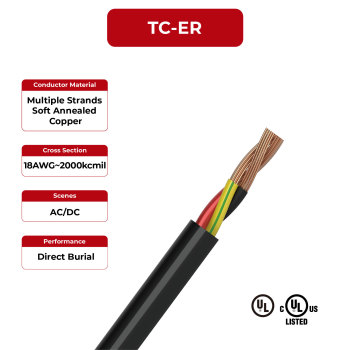

600V Solar Cable Copper Conductor TC-ER
- group name
- Copper Conductor
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- TC-ER
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 18:20:31 GMT
Paramtents
Rated temperature -40°C~90°C
Rated voltage 600V
Number of cores ≥2
Conductor Multiple strands soft annealed copper
Insulation XLPE, Black & red & yellow/green or other colors
Jacket XLPO, Black
Reference Standard UL758, UL1581, UL44, UL1277
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 18AWG~2000kcmil
Color: Black, red, yellow/green or other colors
Color: Black, red, yellow/green or other colors
Detailed
TC-ER Solar Cable Advantages
600V Solar Cable Copper Conductor TC-ER
This cable can be used for photovoltaic inverter AC branch lines.
· Oil resistant
· Waterproof
· Sunlight resistant
· Extrusion resistant
· Rated for direct burial
· High flame retardant Vw-1
TC-ER Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Rated voltage | 600V | |
|
Number of cores
|
≥2
|
|
Reference Standard | UL758, UL1581, UL44, UL1277 | |
TC-ER Solar Cable Product description
Cable Name |
Conductor
No. | Cross Section
(AWG) | Insulation Thickness
(mm) | Insulation O.D.
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable Copper Conductor TC-ER | 2 | 18 | 0.76 | 2.80 | 1.14 | 8.40 | 21.80 |
16 | 0.76 | 3.10 | 1.14 | 9.00 | 13.70 | ||
14 | 0.76 | 3.50 | 1.14 | 9.80 | 8.62 | ||
12 | 0.76 | 4.00 | 1.14 | 10.80 | 5.43 | ||
10 | 0.76 | 4.60 | 1.14 | 12.00 | 3.409 | ||
3 | 18 | 0.76 | 2.80 | 1.14 | 8.80 | 21.80 | |
16 | 0.76 | 3.10 | 1.14 | 9.60 | 13.70 | ||
14 | 0.76 | 3.50 | 1.14 | 10.40 | 8.62 | ||
12 | 0.76 | 4.00 | 1.14 | 11.50 | 5.43 | ||
10 | 0.76 | 4.60 | 1.14 | 12.80 | 3.409 | ||
8 | 1.14 | 6.50 | 1.52 | 17.60 | 2.144 | ||
6 | 1.14 | 7.50 | 1.52 | 19.80 | 1.348 | ||
4 | 18 | 0.76 | 2.80 | 1.14 | 9.60 | 21.80 | |
16 | 0.76 | 3.10 | 1.14 | 10.40 | 13.70 | ||
14 | 0.76 | 3.50 | 1.14 | 11.40 | 8.62 | ||
12 | 0.76 | 4.00 | 1.14 | 12.60 | 5.43 | ||
10 | 0.76 | 4.60 | 1.52 | 14.20 | 3.409 | ||
8 | 1.14 | 6.50 | 1.52 | 19.00 | 2.144 | ||
5 | 18 | 0.76 | 2.80 | 1.14 | 10.60 | 21.80 | |
16 | 0.76 | 3.10 | 1.14 | 11.50 | 13.70 | ||
14 | 0.76 | 3.50 | 1.14 | 12.60 | 8.62 | ||
12 | 0.76 | 4.00 | 1.52 | 14.60 | 5.43 | ||
10 | 0.76 | 4.60 | 1.52 | 16.20 | 3.409 |
