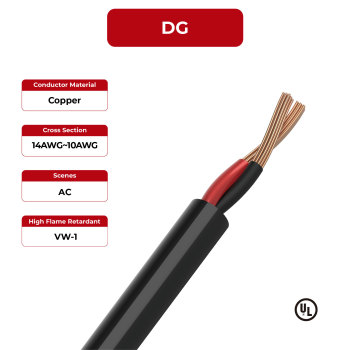

600V Solar Cable Copper Conductor DG

group name: Copper Conductor

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: DG

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 17:16:31 GMT

contact supplier

Paramtents

Rated temperature -40°C~90°C
Rated voltage 600V
Conductor Strands bare or tinned copper
Insulation XLPE, Optional color
Jacket XLPE, Black
Reference Standard UL3003, UL44

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 14AWG~10AWG
Insulation Color: Optional color
Jacket Color: Black

Detailed

DG Solar Cable Advantages

600V Solar Cable Copper Conductor DG

DG cables (distributed generation cables) are designed for specific distributed generation equipment/devices, such as photovoltaic modules, inverters, solar trackers, etc. SUNKEAN has passed the most accurate and targeted certification UL3003 of DG cable. According to the applicable scope of UL3003, the DG cable with 600V voltage and copper conductor is designed to be wrapped under the overall sheath. With its excellent adaptability to harsh outdoor conditions, the cable can be installed in cable trays, cable ducts, and outdoor locations supported by load-bearing cables.

· Oil resistant

· Waterproof

· Sunlight resistant

· Extrusion resistant

· Rated for direct burial

· High flame retardant VW-1

DG Solar Cable Technical Data

Rated temperature	-40°C~90°C
Rated voltage	600V
Reference Standard	UL3003, UL44

DG Solar Cable Product description

Cable Name	Conductor No.	Cross Section (AWG)	Insulation Thickness (mm)	Insulation O.D. (mm)	Jacket Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
600V Solar Cable Copper Conductor DG	2	14	0.76	3.50	1.14	9.60	8.62
		12	0.76	4.00	1.4	10.60	5.43
		10	0.76	4.65	1.4	12.00	3.409
