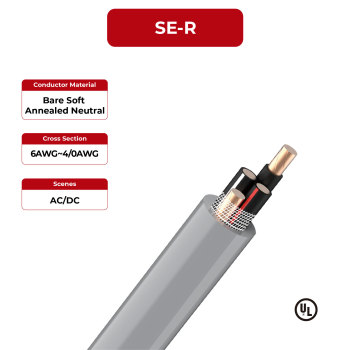

600V Solar Cable Copper Cable SE-R
- group name
- Copper Conductor
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- SE-R
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Thu, 21 Nov 2024 19:44:34 GMT
Paramtents
Rated temperature -40°C~90°C
Rated voltage 600V
Reference Standard UL854, UL1893
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 6AWG~4/0AWG
Insulation color: Black
Jacket Color: Gray
Insulation color: Black
Jacket Color: Gray
Detailed
SE-R Solar Cable Advantages
600V Solar Cable Copper Cable SE-R
Type SE, 600V service entrance cable with aluminum conductor, is primarily used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard. However, the cable may be used in all applications where Type SE cable is permitted. SER may be used in wet or dry locations at temperatures not to exceed 90°C. Compared to SE-U, SE-R is rounder from appearance.
· UV resistant
· Low smoke halogen free
· Can be used in wet and dry environments
SE-R Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
|
Rated voltage
|
600V
|
|
Reference Standard | UL854, UL1893 | |
SE-R Solar Cable Product description
Cable Name |
Cross Section
(AWG) | Insulation Thickness
(mm) | Ground Size (AWG) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,25°C) |
600V Solar Cable Copper Cable SE-R | 6 | 1.14 | 1x6 | 0.76 | 18.40 | 0.411 |
4 | 1.14 | 1x6 | 0.76 | 20.30 | 0.258 | |
3 | 1.14 | 1x5 | 0.76 | 22.10 | 0.205 | |
2 | 1.14 | 1x4 | 0.76 | 24.00 | 0.162 | |
1 | 1.40 | 1x3 | 0.76 | 29.10 | 0.128 | |
1/0 | 1.40 | 1x2 | 0.76 | 31.50 | 0.102 | |
2/0 | 1.40 | 1x1 | 0.76 | 34.20 | 0.081 | |
3/0 | 1.40 | 1x1/0 | 0.76 | 37.10 | 0.064 | |
4/0 | 1.40 | 1x2/0 | 0.76 | 42.60 | 0.051 |
