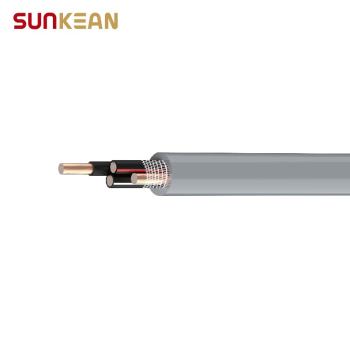

600V Solar Cable Aluminum Conductor SE-R

group name: Aluminum Conductor

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: SE-R

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 19:20:49 GMT

contact supplier

Paramtents

Rated temperature -40°C~90°C
Rated voltage 600V
Conductor Class B, Copper or aluminum
Insulation XLPE
Binder Reinforcement binder
Jacket PVC, Gray
Reference Standard UL854, UL1893

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 6AWG~4/0AWG
Insulation color: Black
Jacket Color: Gray

Detailed

SE-R Solar Cable Advantages

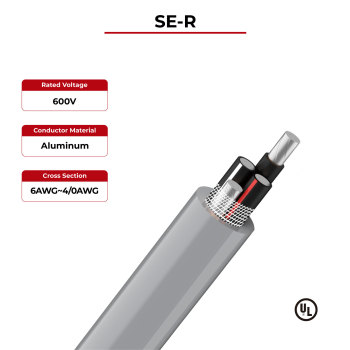

600V Solar Cable Aluminum Conductor SE-R

Type SE, 600V service entrance cable with aluminum conductor, is primarily used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard. However, the cable may be used in all applications where Type SE cable is permitted. SER may be used in wet or dry locations at temperatures not to exceed 90°C. Compared to SE-U, SE-R is rounder from appearance.

· UV resistant

· Low smoke halogen free

· Can be used in wet and dry environments

SE-R Solar Cable Technical Data

Rated temperature	-40°C~90°C
Rated voltage	600V
Reference Standard	UL854, UL1893

SE-R Solar Cable Product description

Cable Name	Cross Section (AWG)	Insulation Thickness (mm)	Ground Size (AWG)	Jacket Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,25°C)
600V Solar Cable Aluminum Conductor SE-R	6	1.14	1x6	0.76	18.40	0.411
	4	1.14	1x6	0.76	20.30	0.258
	3	1.14	1x5	0.76	22.10	0.205
	2	1.14	1x4	0.76	24.00	0.162
	1	1.40	1x3	0.76	29.10	0.128
	1/0	1.40	1x2	0.76	31.50	0.102
	2/0	1.40	1x1	0.76	34.20	0.081
	3/0	1.40	1x1/0	0.76	37.10	0.064
	4/0	1.40	1x2/0	0.76	42.60	0.051
