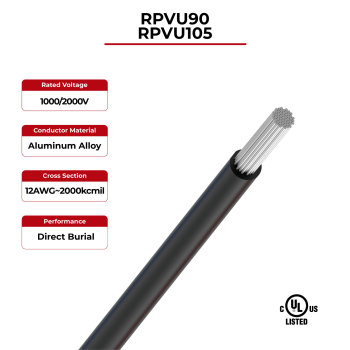

2kV Solar Cable Aluminum Conductor Single Layer RPVU90, RPVU105

group name: Aluminum Conductor

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: RPVU90, RPVU105

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 18:27:53 GMT

contact supplier

Paramtents

Rated voltage 1000/2000V
Insulation XLPO, Black, red, white or other colors
Conductor Aluminum alloy
According to CSA C22.2 NO.271:11, CSA C22.2 NO.38

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 14AWG~2000kcmil
Color: Black, red, white or other colors

Detailed

RPVU90, RPVU105 Solar Cable Advantages

2kV Solar Cable Aluminum Conductor Single Layer RPVU90, RPVU105

RPVU cable passed the FT-1 vertical burning test and has good flame retardancy, the 2kV voltage makes it perfectly suitable for various large-scale projects such as photovoltaic power stations. We prepare brand new but project-experienced aluminum conductor solutions, which can effectively control costs.

· UV resistant

· Rated for direct buria

· High flame retardant FT

· Low smoke halogen free

· Higher insulation resistance

RPVU90, RPVU105 Solar Cable Technical Data

Rated temperature	RPVU90: -40°C ~ +90°C RPVU105: -40°C ~ +105°C
Rated voltage	1000/2000V
Reference Standard	CSA C22.2 NO.271:11 CSA C22.2 NO.38

RPVU90, RPVU105 Solar Cable Product description

Cable Name	Cross Section (AWG)	Insulation Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
2kV RPVU90, RPVU105 Single Layer	6	2.03	8.40	2.210
	4	2.03	9.50	1.390
	2	2.03	10.90	0.875
	1	2.41	12.45	0.693
	1/0	2.41	13.35	0.550
	2/0	2.41	14.45	0.436
	3/0	2.41	15.55	0.346
	4/0	2.41	16.95	0.274
	250	2.79	18.85	0.232
	300	2.79	20.15	0.194
	350	2.79	21.35	0.166
	400	2.79	22.35	0.145
	450	2.79	23.45	0.129
	500	2.79	24.35	0.116
	550	3.18	25.95	0.106
	600	3.18	26.85	0.0967
	650	3.18	27.65	0.0893
	700	3.18	28.40	0.0829
	750	3.18	29.30	0.0774
