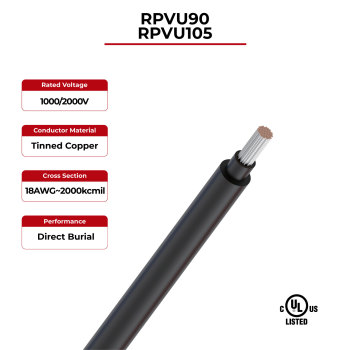

2kV Solar Cable Copper Conductor Dual Layer RPVU90, RPVU105

group name: Copper Conductor

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: RPVU90, RPVU105

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 20:01:42 GMT

contact supplier

Paramtents

Rated voltage 1000/2000V
Outer Layer XLPO, Black, red or other colors
Inner Layer XLPO, Black or white
Conductor Aluminum alloy
According to CSA C22.2 NO.271:11, CSA C22.2 NO.38

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 14AWG~2000kcmil
Color: Black, red or other colors

Detailed

RPVU90, RPVU105 Solar Cable Advantages

2kV Solar Cable Copper Conductor Dual Layer RPVU90, RPVU105

This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components. It is suitable for outdoor extreme environment.

· UV resistant

· Rated for direct buria

· High flame retardant FT

· Low smoke halogen free

· Higher insulation resistance

RPVU90, RPVU105 Solar Cable Technical Data

Rated temperature	RPVU90: -40°C ~ +90°C RPVU105: -40°C ~ +105°C
Rated voltage	1000/2000V
Reference Standard	CSA C22.2 NO.271:11 CSA C22.2 NO.38

RPVU90, RPVU105 Solar Cable Product description

Cable Name	Cross Section (AWG)	Inner Layer Thickness (mm)	Inner Layer O.D. (mm)	Outer Layer Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
2kV RPVU90, RPVU105 Dual Layer	12	1.16	4.58	0.38	5.10	5.43
	10	1.16	5.19	0.38	5.60	3.41
	8	1.35	6.31	0.76	7.40	2.14
	6	1.69	7.9	0.76	9.80	1.35
	4	1.69	9.1	0.76	11.00	0.848
	2	1.69	10.57	0.76	12.30	0.534
	1	2.02	12.22	1.14	14.70	0.423
	1/0	2.02	13.23	1.14	15.70	0.335
	2/0	2.02	14.04	1.14	16.50	0.266
	3/0	2.02	15.64	1.14	18.10	0.211
	4/0	2.02	17.04	1.14	19.50	0.167
