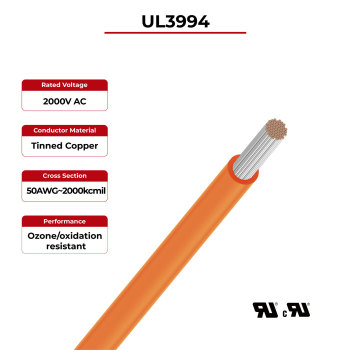

2kV Energy Storage Cable UL3994
- group name
- CUL Energy Storage Cable
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- UL3994
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Fri, 22 Nov 2024 04:59:24 GMT
Paramtents
Conductor Tinned or bare copper, stranded or solid
Insulation XLPO, RoHS compliant
Rated temperature -40°C~ +105°C
Rated voltage 2000V AC
According to UL758, UL1581
Flame test Horizontal flame UL VW-1 & CSA FT1
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 50AWG~2000kcmil
Color: Orange, Optional color
Color: Orange, Optional color
Detailed
UL 3994 Energy Storage Cable Advantages
UL 3994 Energy Storage Cable
UL 3994 energy storage cables are crucial components in energy storage systems (ESS), serving to connect and transmit electrical power between different system elements, such as batteries, inverters, and the grid. Battery storage cables are designed to handle high currents and voltages, ensuring the efficient and safe transfer of electricity in systems like lithium-ion or flow batteries, which are commonly used for storing energy from renewable sources such as solar.
· Low smoke halogen free
· High temperature resistant
· Ozone/oxidation resistant
· High flexibility
UL 3994 Energy Storage Cable Technical Data
|
Conductor
|
Tinned or bare copper, stranded or solid
|
|
|
Insulation
|
XLPO, RoHS compliant |
|
|
Rated temperature
|
-40°C~ +105°C
|
|
|
Rated voltage
|
2000V AC
|
|
According to | UL758, UL1581 | |
Flame test | Horizontal flame
UL VW-1 & CSA FT1 | |
UL 3994 Energy Storage Cable Product description
Cable Name |
Cross Section
(AWG) |
Insulation Nom Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
UL 3994 |
24
|
0.76
|
2.20
|
94.2 |
22 | 0.76 | 2.40 | 59.4 | |
20 | 0.76 | 2.60 | 36.7 | |
18 | 0.76 | 2.80 | 23.2 | |
16 | 0.76 | 3.10 | 14.6 | |
14 | 0.76 | 3.50 | 8.96 | |
12 | 0.76 | 4.00 | 5.64 | |
10 | 0.76 | 4.90 | 3.54 | |
9 | 0.76 | 5.30 | 2.81 | |
8 | 1.15 | 6.50 | 2.23 | |
7 | 1.15 | 7.00 | 1.768 | |
6 | 1.15 | 7.60 | 1.403 | |
5 | 1.15 | 8.20 | 1.113 | |
4 | 1.15 | 9.00 | 0.882 | |
3 | 1.15 | 9.80 | 0.6996 | |
2 | 1.15 | 10.90 | 0.5548 | |
1 | 1.40 | 12.30 | 0.4398 | |
1/0 | 1.40 | 13.40 | 0.3487 | |
2/0 | 1.40 | 14.70 | 0.2766 | |
3/0 | 1.40 | 16.20 | 0.2194 | |
4/0 | 1.40 | 17.80 | 0.1722 |
