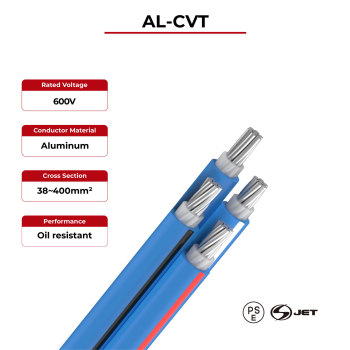

600V Solar Cable AL-CVT JET Certified

group name: JET Solar Cable

Min Order: 1000 meter

brand name: SUNKEAN Solar Manufacturer

model: CVT

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 19:49:40 GMT

contact supplier

Paramtents

Rated temperature -15°C~90°C
Tested voltage 2.5kV/1min AC, 3.0kV/1min AC
Rated voltage 600V
Reference Standard JCS 4348, JIS C 3005
Conductor Aluminum
Insulation XLPE, Natural color
Jacket PVC, Blue

Packging & Delivery

Min Order1000 meter

Briefing

Conductor: 150~500mm²
Insulation Color: Natural
Jacket Color: Blue

Detailed

600V AL-CVT Solar Cable JET Certified Advantages

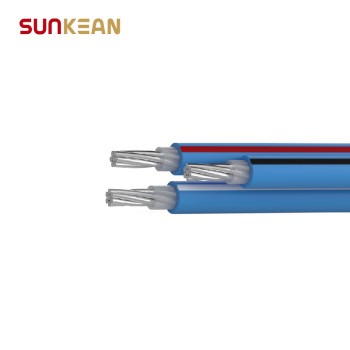

600V Solar Cable AL-CVT JET Certified

The T in the name of CVT cable means triple, i.e. three cores, which are clearly distinguished by different colored marking strips. With the most universal 600V low voltage and aluminum conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JIS C 3005 flame retardant test, ensuring the security and stability of Japanese market projects.

· Good flexibility

· Damp heat resistant

· Oil resistant

· UV resistant

· Flame retardant JIS C 3005 (60 degrees tilt test)

600V AL-CVT Solar Cable JET Certified Technical Data

Rated temperature	-15°C~90°C
Tested voltage	2.5kV/1min AC，3.0kV/1min AC
Rated voltage	600V
Reference Standard	JCS 4348, JIS C 3005

600V AL-CVT Solar Cable JET Certified Product description

Cable Name	Cross Section (mm²)	Insulation Thickness (mm)	Jacket Thickness (mm)	Cable O.D. (mm)	Approximate Weight (kg/km)	Conductor Resistance Max (Ώ/km,20°C)
600V Solar Cable AL-CVT JET	150	2.0	1.5	47.0	2060	0.204
	200	2.5	1.7	55.0	2770	0.153
	250	2.5	1.8	60.0	3330	0.123
	325	2.5	1.9	66.0	4130	0.0951
	400	2.5	2.0	72.0	4930	0.0772
	500	3.0	2.1	82.0	5940	0.0621
