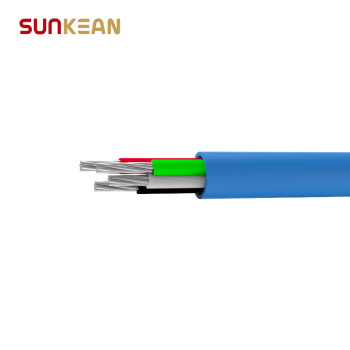

600V Solar Cable Aluminum Copper CV Multi Core

group name: Aluminum Conductor

Min Order: 1000 meter

brand name: SUNKEAN Solar Manufacturer

model: CV Single Core

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 21 Nov 2024 19:42:07 GMT

contact supplier

Paramtents

Rated temperature -15°C~+90°C
Tested voltage 14~22mm² : 2.0 k V/1min AC
Rated voltage 600V DC
Reference Standard JCS 4348，JIS C 3005
Conductor Aluminum
Insulation XLPE, Natural color
Jacket PVC, Blue

Packging & Delivery

Min Order1000 meter

Briefing

Conductor: 14~22mm²
Insulation Color: Natural
Jacket Color: Blue

Detailed

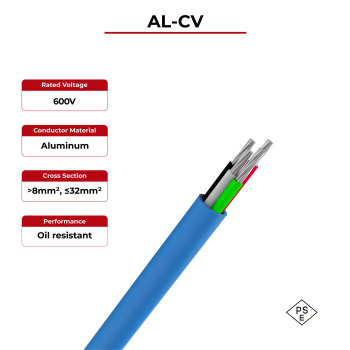

600V AL-CV Multi Core Solar Cable Advantages

600V Solar Cable Aluminum Conductor CV Multi Core

Compared with CV multi-core cable, CV single-core cable has natural color insulation. With the most universal 600V low voltage and aluminum conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JIS C 3005 flame retardant test and JCS 4348, ensuring the security and stability of Japanese market projects.

· Good flexibility

· Damp heat-resistant

· Oil resistant

· UV resistant

600V AL-CV multi Core Solar Cable Technical Data

Rated temperature	-15°C~+90°C
Tested voltage	14~22mm² : 2.0 k V/1min AC
Rated voltage	600V
Reference Standard	JCS 4348, JIS C 3005

600V AL-CV Multi Core Solar Cable Product description

Cable Name	Cross Section (mm²)	Insulation Thickness (mm)	Jacket Thickness (mm)	Cable O.D. Range (mm)	Approximate Weight (kg/km)	Conductor Resistance Max (Ώ/km,20°C)
600V Solar Cable Aluminum Conductor CV Multi Core	2x14	1.0	1.5	16.50±0.50	251	2.18
	2x22	1.2	1.5	19.50±0.50	349	1.39
	3x14	1.0	1.5	17.50±0.50	309	2.18
	3x22	1.2	1.5	20.70±0.80	437	1.39
	4x14	1.0	1.5	19.30±0.80	382	2.18
	4x22	1.2	1.5	23.10±0.80	555	1.39
