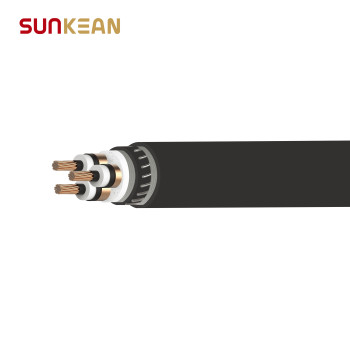

Solar Power Cable Medium Voltage MV 19/33(36)kV Three Core
- group name
- Medium Voltage Solar Cable
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- MV 19/33(36)kV Three Core
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Sun, 19 Jan 2025 02:37:29 GMT
Paramtents
Rated voltage 18/30(36)kV or19/33(36) kV
Test voltage 63kV/5 mins
Conductor Copper
Insulation XLPE
Max. Short-circuit temperature 250 ℃
Operating conductor temperature 90 ℃
Temperature range for operating -35 to +90 ℃
Colour of sheath Black
Min. bending radius 12 OD
Standard IEC 60502-2
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 14AWG~2000kcmil
Jacket Color: Black
Jacket Color: Black
Detailed
MV 19/33(36)kV Three Core Solar Cable Advantages

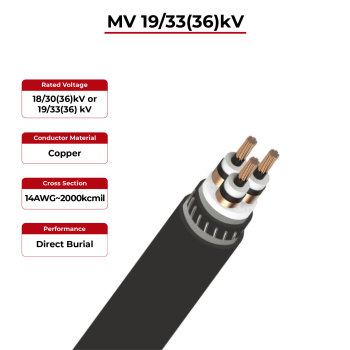

Solar Power Cable Medium Voltage MV 19/33(36)kV Three Core
Cables are designed for fixed installation into distribution network or possibly damp environments. lf it is necessary to lay the cable in the ground, it has to be provided with a protection tube made of plastics, and has to be laid in bed of sand. The cables are resistant to UV radiation and flame propagation according to lEC 60332.
· Rated for direct burial
· Duried in conduit
· Low smoke halogen free
· Higher insulation resistance
· High Voltage
MV 19/33(36)kV Three Core Solar Cable Technical Data
|
Maximum Conductor Temperature
|
90 °C
|
|
|
Rated voltage
|
18/30(36)kV or19/33(36) kV
|
|
Reference Standard | IEC 60502-2 | |
MV 19/33(36)kV Three Core Solar Cable Product description
Cable Name |
No. Cores & Cross Section Area (m㎡) | Approx. diameter of conductor |
Nominal
Thickness of Insulation (mm) |
Max. Overall Diameter of Cable (mm) | Approx. Weight of Cable (kg/km) | Max. D.C Resistance of Conductor (Ω/km, 20℃) | Max. A.C Resistance of Conductor (Ω/km, 90℃) |
MV 19/33(36)kV Three Core Solar Cable | 3 x 50 | 8.1 | 8.0 | 80.5 | 9120.5 | 0.387 | 0.494 |
3 x 70 | 9.8 | 8.0 | 84.8 | 10336.0 | 0.268 | 0.342 | |
3 x 95 | 11.4 | 8.0 | 88.8 | 11621.1 | 0.193 | 0.247 | |
3 x 120 | 12.9 | 8.0 | 92.6 | 12847.7 | 0.153 | 0.196 | |
3 x 150 | 14.4 | 8.0 | 96.3 | 14137.4 | 0.124 | 0.159 | |
3 x 185 | 16.0 | 8.0 | 100.3 | 15726.4 | 0.0991 | 0.128 | |
3 x 240 | 18.4 | 8.0 | 106.4 | 18236.0 | 0.0754 | 0.0979 | |
3 x 300 | 20.6 | 8.0 | 111.7 | 20767.9 | 0.0601 | 0.0789 | |
3 x 400 | 23.4 | 8.0 | 119.0 | 24242.2 | 0.0470 | 0.0630 |
