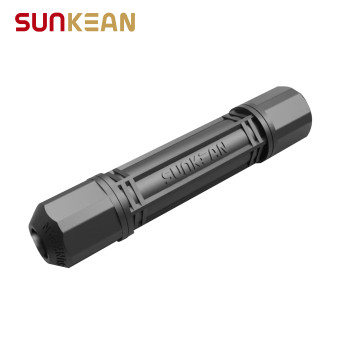

SK-TC CU-AL Conversion Connector TÜV
- group name
- Solar Connector
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- SK-TC
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 24 May 2025 03:21:10 GMT
Paramtents
Certification TÜV
Contact Material Copper-Aluminum Alloy, Tin-Plated
Certification Standards IEC62852
Packging & Delivery
-
Min Order1 piece
Briefing
Solar Connectors are specialized connectors used for cable connections in solar photovoltaic (PV) systems.
Detailed
Advantages
SK-TC CU-AL Conversion Connector
· Secure Connection, Superior Electrical Performance
· Longer Lifespan with Advanced Anti-Corrosion Coating
· Quick Installation, Compatible with Standard Systems
· Stable Performance in Extreme Environments
· Lightweight Design for Efficient Installation
· Eco-Friendly Production, Lower Lifecycle Cost
Product description
Product Name | Item | Plug Connector |
||
SK-TC CU-AL Conversion Connector | Operating Temperature Range | -40°C~+85°C |
||
Maximum Temperature | 115°C |
|||
Protection Rating | IP68（1m, 1h)/ IP65 | |||
Protection Rating (Unmated) | IP 2X | |||
Rated Voltage | 1500V DC | |||
Rated Current (at 85°C) | 50A 10mm²
70A 16mm² | |||
Rated Pulse Voltage | 16kV | |||
Contact Resistance | ≤ 0.3mΩ | |||
Flammability Rating | UL94V-0 | |||
Overvoltage Category | CAT III | |||
Pollution Degree | 2 | |||
Insulation Material | PA66 | |||
Contact Material | Copper-Aluminum Alloy, Tin-Plated | |||
Connection Method | Crimping | |||
Certification Standards | IEC62852 | |||
