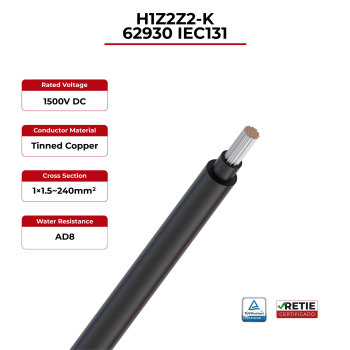

1.5kV Desert Solar Cable 62930 IEC131 / H1Z2Z2-K
- group name
- Copper Conductor
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- 62930 IEC131 / H1Z2Z2-K
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Wed, 02 Jul 2025 00:32:35 GMT
Paramtents
Tested voltage 6500V AC
Rated voltage DC 1500V
Rated temperature -40°C~90°C
Conductor Tinned copper 1X1.5~400mm²
Insulation XLPE
Jacket XLPO
Water resistance AD8
Reference Standard EN50618 & IEC62930
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 1×1.5~400mm²
Insulation Color: Optional color
Jacket Color: Optional color
Insulation Color: Optional color
Jacket Color: Optional color
Detailed
62930 IEC131 / H1Z2Z2-K Desert Solar Cable Advantages
1.5kV Desert Solar Cable 62930 IEC131 / H1Z2Z2-K
This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components, and especially suitable for desert solar projects, featuring an AD8 water resistance rating and utilizing superior XLPE insulation material.
· Higher UV-stability
· Resistant to high and low temperature differences
· Water resistance AD8
· Wear resistant
· Higher mechanical stability
· Higher insulation resistance
· Moisture-proof and waterproof
62930 IEC131 / H1Z2Z2-K Solar Cable Technical Data
|
Conductor
|
Tinned copper
|
|
|
Insulation
|
XLPE
|
|
|
Rated temperature
|
-40°C~90°C
|
|
Tested voltage | 6500V AC | |
|
Rated voltage
|
DC 1500V
|
|
Testing Standard | Smoke Density Test: Transmittance≥60% EN50618
Cold Bending Test: -40°C±2°C no crack EN60811-504 | |
Reference Standard | EN50618 & IEC62930 | |
62930 IEC131 / H1Z2Z2-K Solar Cable Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Desert Solar Cable 62930 IEC131 / H1Z2Z2-K | 1.5 | 0.70 | 0.80 | 4.70 | 13.7 |
2.5 | 0.70 | 0.80 | 5.20 | 8.21 | |
4.0 | 0.70 | 0.80 | 5.50 | 5.09 | |
6.0 | 0.70 | 0.80 | 6.10 | 3.39 | |
10 | 0.70 | 0.80 | 7.20 | 1.95 | |
16 | 0.70 | 0.90 | 8.80 | 1.24 | |
25 | 0.90 | 1.00 | 10.80 | 0.795 | |
35 | 0.90 | 1.10 | 12.40 | 0.565 |
