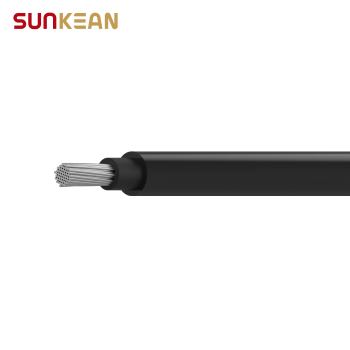

1.5kV Desert Solar Cable 2PfG 2642 PV1500DC-AL-K
- group name
- Aluminum Conductor
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- 2PfG 2642 PV1500DC-AL-K
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Tue, 01 Jul 2025 23:59:34 GMT
Paramtents
Rated temperature -40°C~90°C
Max. Short Circuit Temp 250°C / 5s
Tested voltage 6.5kVAC / 5min
Rated voltage DC 1500V U0/U=1000V
Conductor Stranded aluminum alloy, Class 5, 1×2.5~400mm²
Insulation XLPE
Jacket XLPO
Flame test IEC 60332-1
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 1×2.5~400mm²
Insulation Color: Black
Jacket Color: Black
Insulation Color: Black
Jacket Color: Black
Detailed
2PfG 2642 PV1500DC-AL-K Solar Cable Advantages
1.5kV Desert Solar Cable 2PfG 2642 PV1500DC-AL-K
This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components, and especially suitable for desert solar projects, featuring an AD8 water resistance rating and utilizing superior XLPE insulation material.
· Higher UV-stability
· Resistant to high and low temperature differences
· Water resistance AD8
· Wear resistant
· Higher mechanical stability
· Higher insulation resistance
· Moisture-proof and waterproof
2PfG 2642 PV1500DC-AL-K Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Max. Short Circuit Temp | 250°C / 5s | |
Tested voltage | 6.5kVAC / 5min | |
|
Rated voltage
|
DC 1500V
U0/U=1000V |
|
2PfG 2642 PV1500DC-AL-K Solar Cable Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) | Insulation O.D.
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Desert Solar Cable 2PfG 2642 PV1500DC-AL-K | 2.5 | 0.70 | 3.70 | 0.80 | 5.30 | 13.20 |
4 | 0.70 | 4.20 | 0.80 | 5.80 | 8.10 | |
6 | 0.70 | 4.70 | 0.80 | 6.30 | 5.05 | |
10 | 0.80 | 5.90 | 0.80 | 7.50 | 3.08 | |
16 | 0.90 | 7.20 | 0.90 | 9.00 | 1.91 | |
25 | 1.00 | 8.70 | 1.00 | 10.70 | 1.200 | |
35 | 1.10 | 10.00 | 1.10 | 12.20 | 0.868 | |
50 | 1.20 | 11.60 | 1.20 | 14.00 | 0.641 | |
70 | 1.20 | 13.50 | 1.20 | 15.90 | 0.443 | |
95 | 1.30 | 15.50 | 1.30 | 18.10 | 0.320 | |
120 | 1.30 | 17.00 | 1.30 | 19.60 | 0.253 | |
150 | 1.40 | 18.90 | 1.40 | 21.70 | 0.206 | |
185 | 1.60 | 21.00 | 1.60 | 24.20 | 0.164 | |
240 | 1.70 | 23.80 | 1.70 | 27.20 | 0.125 | |
300 | 1.80 | 26.40 | 1.80 | 30.00 | 0.1000 | |
400 | 2.00 | 30.10 | 2.00 | 34.10 | 0.0778 |
