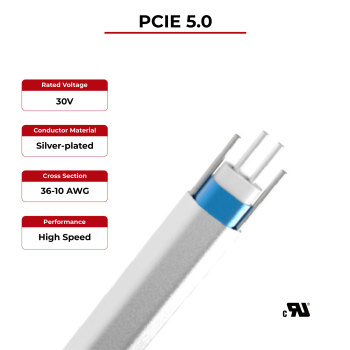

85Ω High Speed Cable PCIE 5.0 UL Certified
- group name
- AI Interconnection Cable
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- PCIE5.0
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Sun, 19 Oct 2025 23:13:59 GMT
Paramtents
Rated temperature 80°C
Rated voltage 30V
Conductor Silver-plated
Insulation FEP+FEP/PE; FEP+PTFE
Environmental Standards Compliance RoHS 2.0
File Number E522621
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 30AWG, 32AWG
Insulation: FEP+FEP/PE; FEP+PTFE
Insulation: FEP+FEP/PE; FEP+PTFE
Detailed
High Speed Cable PCIE 5.0 Advantages
85Ω High Speed Cable PCIE 5.0
SUNKEAN is actively expanding into the high-speed cable sector, with products widely used in data centers, switches & routers, and servers.
· High Speed: Supports up to 224 Gbps per channel for fast data transmission
· Low Latency: No optical-electrical conversion needed; signals travel near light speed
· High Flame Retardant FT
· Low Loss: Silver-plated conductors and low-loss materials reduce energy loss
· Low Power: Passive copper design enables efficient, power-free transmission
High Speed Cable PCIE 5.0 Technical Data
Conductor | Silver-plated |
Insulation | FEP+FEP/PE
FEP+PTFE |
| Rated temperature | 80°C |
| Rated voltage | 30V |
| Ground Wire | Yes |
Environmental Standards Compliance | RoHS 2.0 |
File Number | E522621 |
High Speed Cable PCIE 5.0 Product description
Cable Name |
Cross Section
(AWG) | Insulation Thickness
(mm) |
Cable O.D.
(mm) | Insertion Loss (16GHz) | Insertion Loss
(28GHz) | Delay |
85Ω High Speed Cable PCIE 5.0 | 32 | 0.4 0.58 | 0.88*1.6 0.95*1.7 | 7.4dB | 12dB | 5.2ns |
30 | 0.52 0.63 | 1.08*1.8 1.05*1.8 | 6.1dB | 9.8dB | 5.2ns |
