100Ω High Speed Cable QSFP56 UL Certified
- group name
- AI Interconnection Cable
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- QSFP56
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Sun, 19 Oct 2025 23:14:00 GMT
Paramtents
Rated temperature 80°C
Rated voltage 30V
Conductor Silver-plated
Insulation PE/Foam FEP/ Foam PE/PE
Environmental Standards Compliance RoHS 2.0
File Number E522621
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 30AWG, 28AWG, 26AWG
Insulation: PE/Foam FEP/ Foam PE/PE
Insulation: PE/Foam FEP/ Foam PE/PE
Detailed
High Speed Cable QSFP56 Advantages

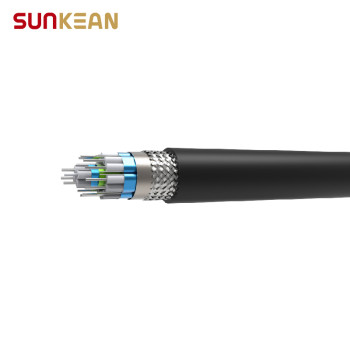

100Ω High Speed Cable QSFP56
SUNKEAN is actively expanding into the high-speed cable sector, with products widely used in data centers, switches & routers, and servers.
· High Speed: Supports up to 224 Gbps per channel for fast data transmission
· Low Latency: No optical-electrical conversion needed; signals travel near light speed
· High Flame Retardant FT
· Low Loss: Silver-plated conductors and low-loss materials reduce energy loss
· Low Power: Passive copper design enables efficient, power-free transmission
High Speed Cable QSFP56 Technical Data
Conductor | Silver-plated |
Insulation | PE/Foam FEP/
Foam PE/PE
|
| Rated temperature | 80°C |
| Rated voltage | 30V |
| Ground Wire | Yes |
Environmental Standards Compliance | RoHS 2.0 |
File Number | E522621 |
High Speed Cable QSFP56 Product description
Cable Name |
Cross Section
(AWG) | Specification
(mm) |
Insulation
| Insulation OD (mm) | Braiding
| Jacket | Cable O.D. (mm) | Insertion Loss (13.28GHz) |
100Ω High Speed Cable QSFP56 | 30 | 1 / 0.285
| PE | 0.94 | Tined Copper
| PVC / TPE
| 7.0 | 5.1dB |
28 | 1 / 0.325
| Foam FEP/
Foam PE/PE
| 0.88/1.1 | Tined Copper
| PVC / TPE
| 8.5 | 4.3dB | |
26 | 1 / 0.41
| Foam FEP/
Foam PE/PE
| 1.15/1.4 | Tined Copper
| PVC / TPE
| 9.9 | 3.5dB |
