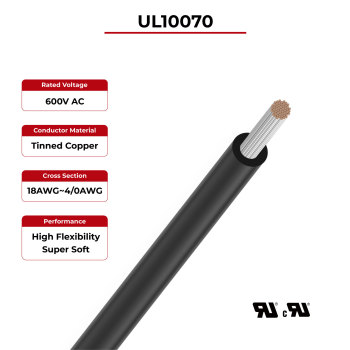

600V Energy Storage Cable UL10070

group name: UL Energy Storage Cable

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: UL10070

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Sat, 03 Jan 2026 06:13:01 GMT

contact supplier

Paramtents

Conductor Fine wire strands of tinned copper
Insulation Special PVC-based compound
Rated temperature -40°C ~ +105°C
Rated voltage AC 600V
Flame Test Horizontal flame UL VW-1 & CSA FT1
According to UL758, UL1581

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 18AWG~2000kcmil
Color: Black, Optional color

Detailed

UL10070 Energy Storage Cable Advantages

UL10070 Energy Storage Cable

UL 10070 energy storage cables are used for internal system of electrical appliances, inverter connection and battery pack connection , etc., flexible cable.

· Easy stripping and cutting

· High flexibility

· High temperature resistant

· UV resistant

· High flame retardant

UL10070 Energy Storage Cable Technical Data

Conductor	Fine wire strands of tinned copper
Insulation	Special PVC-based compound
Rated temperature	-40°C ~ +105°C
Rated voltage	AC 600V
According to	UL758, UL1581
Flame Test	Horizontal flame UL VW-1 & CSA FT1

UL10070 Energy Storage Cable Product description

Cable Name	Cross Section (AWG)	Conductor Size (mm)	Approx. Conductor Stranded O.D. (mm)	Insulation AVG Thickness (mm)	Insulation Min Thickness (mm)	Insulation Diameter (mm)	Maximum DC Resistance Of Conductor At 20℃ （ohms/km(AS/TS)）	Spark Test (kV(AC))	Dielectric Strength (kV/min(AC)）
UL10070	18	16/0.254	1.17	0.76	0.69	2.80±0.10	21.8/23.2	6	2
	17	21/0.254	1.34	0.76	0.69	3.00±0.10	17.3/18.3	6	2
	16	26/0.254	1.49	0.76	0.69	3.10±0.10	13.7/14.6	6	2
	15	32/0.254	1.66	0.76	0.69	3.30±0.10	10.9/11.3	6	2
	14	41/0.254	1.88	0.76	0.69	3.50±0.10	8.62/6.93	6	2
	13	53/0.254	2.13	0.76	0.69	3.75±0.10	6.82/7.10	6	2
	12	65/0.254	2.36	0.76	0.69	4.00±0.15	5.43/5.64	6	2
	11	83/0.254	2.67	0.76	0.69	4.35±0.15	4.30/4.48	6	2
	10	105/0.254	3.00	0.76	0.69	4.70±0.15	3.409/3.546	6	2
	9	131/0.254	3.70	0.76	0.69	5.40±0.15	2.705/2.813	6	2
	8	168/0.254	4.08	1.14	1.02	6.50±0.20	2.144/2.230	6	2
	7	210/0.254	4.70	1.14	1.02	7.10±0.20	1.700/1.768	6	2
	6	266/0.254	5.14	1.52	1.37	8.40±0.20	1.348/1.403	6	2
	5	329/0.254	5.80	1.52	1.37	9.00±0.20	1.070/1.113	6	2
	4	680/0.20	6.36	1.52	1.37	9.55±0.20	0.8481/0.8820	6	2
	3	859/0.20	7.40	1.52	1.37	10.65±0.25	0.6727/0.6996	6	2
	2	1073/0.20	8.40	1.52	1.37	11.65±0.25	0.5335/0.5548	6	2
	1	1350/0.20	9.00	2.03	1.83	13.25±0.25	0.4230/0.4398	6	2
	1/0	1690/0.20	10.20	2.03	1.83	14.45±0.25	0.3354/0.3487	6	2
	2/0	2146/0.20	11.70	2.03	1.83	16.00±0.30	0.2660/0.2766	6	2
	3/0	2700/0.20	13.10	2.03	1.83	17.40±0.30	0.2110/0.2194	6	2
	4/0	3405/0.20	13.90	2.03	1.83	18.20±0.30	0.1673/0.1722	6	2
