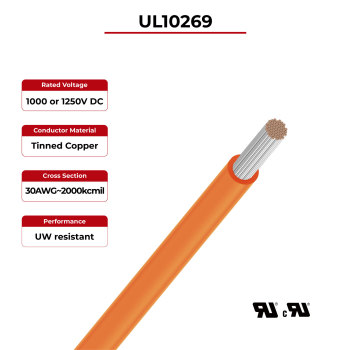

1kV Hook-up Wire UL 10269
- group name
- Industrial Electric Wire
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- UL 10269
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Tue, 10 Feb 2026 10:57:05 GMT
Paramtents
Conductor Tinned copper stranded, or bare copper
Insulation PVC
Rated temperature 80°C, 90°C, 105°C
Rated voltage 1000Vac or 1250Vdc
Flame test Horizontal flame UL VW-1 & CSA FT1
According to UL758, UL1581
Packging & Delivery
-
Min Order1 piece
Briefing
Conductor: 30AWG~2000kcmil
Color: Orange, Optional color
Color: Orange, Optional color
Detailed
UL 10269 Hook-up Wire Advantages
UL 10269 Hook-up Wire
UL 10269 Hook-Up Wire is a single-conductor internal wiring cable for electrical and electronic equipment. It features a bare or tinned copper conductor with cross-linked PVC (XL-PVC) insulation, offering excellent heat and abrasion resistance. The wire is typically rated for 600V and 105°C, making it suitable for demanding internal wiring applications.
· Easy stripping and cutting
· High flexibility
· High temperature resistant
· UW resistant
· High flame retardant
UL 10269 Hook-up Wire Technical Data
|
Conductor:
|
Tinned copper stranded, or bare copper stranded or solid conductor
|
|
|
Insulation:
|
PVC, passed RoHS |
|
|
Rated temperature:
|
105°C
|
|
|
Rated voltage:
|
1000V
|
|
According to: | UL758, UL1581 | |
Flame test: | Horizontal flame
UL VW-1 & CSA FT1 | |
UL 10269 Hook-up Wire Product description
Cable Name |
Cross Section
(AWG) |
Insulation Nom Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
UL 10269 | 24 | 0.76 | 2.20 | 94.20 |
22 | 0.76 | 2.40 | 59.40 | |
20 | 0.76 | 2.60 | 36.70 | |
|
18
|
0.76
|
2.80
|
23.20 | |
|
16
|
0.76
|
3.10
|
14.60 | |
14 | 0.76 | 3.50 | 8.96 | |
12 | 0.76 | 4.00 | 5.64 | |
10 | 0.76 | 4.70 | 3.54 | |
9 | 0.76 | 5.40 | 2.81 | |
8 | 1.14 | 6.60 | 2.23 | |
7 | 1.14 | 7.10 | 1768 | |
6 | 1.52 | 8.50 | 1.403 | |
5 | 1.52 | 9.10 | 1.113 | |
4 | 1.52 | 9.90 | 0.882 | |
3 | 1.52 | 10.80 | 0.6996 | |
2 | 1.52 | 11.70 | 0.5548 | |
1 | 2.03 | 14.00 | 0.4398 | |
1/0 | 2.03 | 15.10 | 0.3487 | |
2/0 | 2.03 | 16.50 | 0.2766 | |
3/0 | 2.03 | 17.60 | 0.2194 | |
4/0 | 2.03 | 19.30 | 0.1722 |
