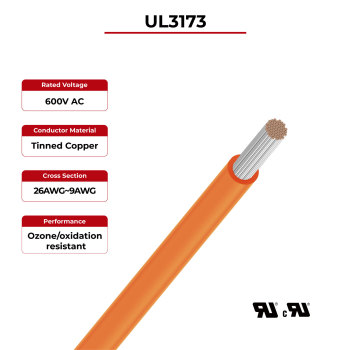

600V Hook-up Wire UL3173

group name: Industrial Electric Wire

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: UL3173

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Thu, 12 Feb 2026 04:25:03 GMT

contact supplier

Paramtents

Conductor Tinned/bare copper stranded or single conductor
Insulation XLPO, RoHS compliant
Rated temperature 125°C
Rated voltage 600V AC
Flame Test Horizontal flame UL VW-1 & CSA FT1
According to UL758, UL1581

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 26AWG~9AWG
Color: Orange, Optional color

Detailed

UL3173 Hook-up wire Advantages

UL3173 Hook-up wire

UL 3173 Hook-Up Wire is a single-conductor internal wiring cable designed for use in electrical and electronic equipment operating in elevated temperature environments. It features a bare or tinned copper conductor with high-temperature PVC insulation, rated for 600V and 125°C. The wire provides reliable electrical performance, good flexibility, and flame-retardant properties, making it suitable for demanding internal wiring applications.

· Low smoke halogen free

· High temperature resistant

· Ozone/oxidation resistant

· High flexibility

UL3173 Hook-up wire Technical Data

Conductor	Preferentially tinned copper stranded ，or bare copper stranded or single conductor
Insulation	XLPO, RoHS compliant
Rated temperature	125°C
Rated voltage	600Vac
According to	UL758, UL1581
Flame Test	Horizontal flame UL VW-1 & CSA FT1

UL3173 Hook-up wire Product description

Cable Name	Cross Section (AWG)	Insulation Nom Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
UL3173	26	0.76	2.10	150
	24	0.76	2.20	94.2
	22	0.76	2.35	59.4
	20	0.76	2.55	36.7
	18	0.76	2.80	23.2
	16	0.76	3.15	14.6
	14	0.76	3.55	8.96
	12	0.76	4.05	5.64
	10	0.76	4.90	3.41
