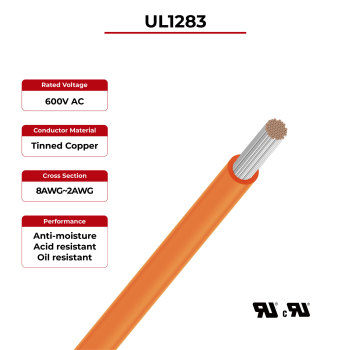

600V Hook-up Wire UL 1283

group name: Industrial Electric Wire

Min Order: 1 piece

brand name: SUNKEAN Solar Manufacturer

model: UL 1283

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF, EXW, FCA, DDP, DDU

Acceptable payment methods: T/T, L/C

update time: Wed, 11 Feb 2026 08:13:15 GMT

contact supplier

Paramtents

Conductor Tinned copper stranded, or bare copper
Insulation Lead free PVC, Passed RoHS
Rated temperature 105°C
Rated voltage 600V
Flame test Horizontal flame UL VW-1 & CSA FT1
According to UL758, UL1581

Packging & Delivery

Min Order1 piece

Briefing

Conductor: 8AWG~2AWG
Color: Orange, Optional color

Detailed

UL 1283 Hook-up Wire Advantages

UL 1283 Hook-up Wire

UL 1283 Hook-Up Wire is a single-conductor internal wiring cable designed for use inside electrical and electronic equipment. It is widely applied in control panels, power supplies, transformers, motors, and general internal wiring where reliable electrical performance and heat resistance are required.

· Anti-moisture

· Acid resistant

· Oil resistant

· Easy stripping and cutting

UL 1283 Hook-up Wire Technical Data

Conductor:	Tinned copper stranded, or bare copper stranded or solid conductor
Insulation:	Lead free PVC, Passed RoHS
Rated temperature:	105°C
Rated voltage:	600V
According to:	UL758, UL1581
Flame test:	Horizontal flame UL VW-1 & CSA FT1

UL 1283 Hook-up Wire Product description

Cable Name	Cross Section (AWG)	Insulation Nom Thickness (mm)	Cable O.D. (mm)	Conductor Resistance Max (Ώ/km,20°C)
UL 1283	8	1.52	7.30	2.35
	7	1.52	7.80	1.87
	6	1.52	8.40	1.48
	5	1.52	9.00	1.17
	4	1.52	9.70	0.928
	3	1.52	10.50	0.744
	2	1.52	11.50	0.590
