SK4 Solar Copper Connector 2.5mm 4mm 6mm 10mm TÜV
- group name
- Solar Connector
- Min Order
- 1 piece
- brand name
- SUNKEAN Solar Manufacturer
- model
- SK4
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CIF, EXW, FCA, DDP, DDU
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 28 Feb 2026 00:49:26 GMT
Paramtents
Operating Temperature Range -40°C~+85°C
Upper Limit Temperature 120°C
Protection Rating IP65/IP68 (1m,1h )
Rated Voltage 1500V DC
Rated Current (at 85°C) 36A 2 .5mm², 41A 4mm², 50A 6mm², 70A 10mm²
Rated Impluse Voltage 27.2kV
Pollution Degree 2 (inside of enclosure)
Insulation Material PA66
Contact Material Tinned Copper Alloy
Certification Standards IEC 62852:2014 + Amd. 1:2020 EN 62852:2015 + Amd.
Certification TÜV Rheinland / TÜV SÜD
Packging & Delivery
-
Min Order1 piece
Briefing
The SK4 Solar Copper Connectors are made from high-performance metal and plastic materials, and are fully compliant with the IEC 62852 standard. They are specifically engineered to meet the demanding environmental requirements of the photovoltaic industry.
Detailed
SK4 Solar Copper Connector Advantages

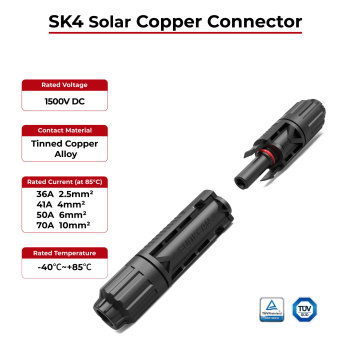

SK4 Solar Copper Connector 2.5mm 4mm 6mm 10mm TÜV
· Secure Connection, Superior Electrical Performance
· Longer Lifespan with Advanced Anti-Corrosion Coating
· Quick Installation, Compatible with Standard Systems
· Stable Performance in Extreme Environments
· Lightweight Design for Efficient Installation
· Eco-Friendly Production, Lower Lifecycle Cost
SK4 Solar Copper Connector Product TUV description
Product Name | Item | Plug Connector |
||
SK4 Solar Copper Connector 2.5mm 4mm 6mm 10mm TÜV | Operating Temperature Range | -40℃~+85℃ |
||
Upper Limit Temperature | 120°C |
|||
Protection Rating | IP65 / IP68 (1m,1h) | |||
Protection Rating (Unmated) | IP 2X | |||
Rated Voltage | 1500V DC | |||
Rated Current (at 85°C) | 36A 2.5mm²41A 4mm² 50A 6mm²
70A 10mm² | |||
Rated Impluse Voltage | 27.2kV | |||
Contact Resistance | ≤ 0.3mΩ | |||
Flammability Rating | UL94V-0 | |||
Overvoltage Category | CAT III | |||
Pollution Degree | 2 (inside of enclosure) | |||
Insulation Material | PA66 | |||
Contact Material | Tinned Copper Alloy | |||
Terminal Connection Method | Crimping | |||
Connector Locking Mechanism | Locking | |||
Mating Cycles of the Connector | 100 | |||
Certification Standards | IEC 62852:2014 + Amd. 1:2020
EN 62852:2015 + Amd. 1:2020 | |||
Certification | TÜV Rheinland / TÜV SÜD | |||
