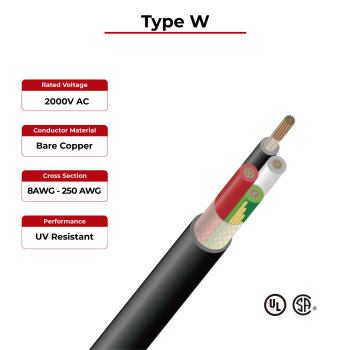

2000V High Speed Cable Type W

contact supplier

Paramtents

Packging & Delivery

Briefing

Conductor: 8AWG~250AWG
Color: Optional color

Detailed

2000V High Speed Cable Type W Advantages

Type W High Speed Cable

Type W high speed cables are used for various electric machineries , electronics, heating parts, car lights, lighting, ballast etc., flexible cable.

· Low smoke halogen free

· High temperature resistant

· Ozone / oxidation resistant

· High flexibility

Type W High Speed Cable Technical Data

Type W High Speed Cable Product description

Cable Name	Conductor			Insulation		Jacket			Maximum conductor resistance at 20°C (DC) (Ω/km) (AS/TS)	Spark Test (kV(AC))	Dielectric Strength (kV/min(AC)）
Cable Name	Conductor Size (AWG)	Cross Section (mm²)	Conductor Size (mm)	Number of core (No.)	Insulation AVG Thickness (mm)	Approx. Jacket I.D. (mm)	JacketThicknes	Approx. Jacket O.D. (mm)	Maximum conductor resistance at 20°C (DC) (Ω/km) (AS/TS)	Spark Test (kV(AC))	Dielectric Strength (kV/min(AC)）
Type W High Speed Cable	8	8.37	4.10	1	1.52	7.6	1.91	12.2	2.18	10	4
				2	1.52	7.6	2.77	21.3
				3	1.52	7.6	3.58	24.2
				4	1.52	7.6	3.58	26.1
				5	1.52	7.6	3.18	27.5
				6	1.52	7.6	3.18	29.8
	6	13.3	5.15	1	1.52	8.6	2.41	13.9	1.38	10	4
				2	1.52	8.6	2.77	23.3
				3	1.52	8.6	3.58	26.3
				4	1.52	8.6	3.58	28.5
				5	1.52	8.6	3.56	31.0
				6	1.52	8.6	3.56	33.6
	4	21.2	6.50	1	1.52	10.0	2.41	15.3	0.865	10	4
				2	1.52	10.0	2.77	26.1
				3	1.52	10.0	3.18	28.6
				4	1.52	10.0	3.18	31.2
				5	1.52	10.0	3.94	35.6
				6	1.52	10.0	3.94	38.6
	2	33.6	8.20	1	1.52	11.7	2.41	17.1	0.549	10	4
				2	1.52	11.7	3.58	31.3
				3	1.52	11.7	3.58	33.1
				4	1.52	11.7	3.18	35.3
				5	1.52	11.7	4.32	41.0
				6	1.52	11.7	4.32	44.5
	1	42.4	9.05	1	2.03	13.6	2.41	19.0	0.436	13	5
				2	2.03	13.6	3.96	35.8
				3	2.03	13.6	3.58	37.2
				4	2.03	13.6	3.58	40.6
				5	2.03	13.6	5.20	47.9
				6	2.03	13.6	5.20	52.2
